Installation Document

A flush look on interior floors

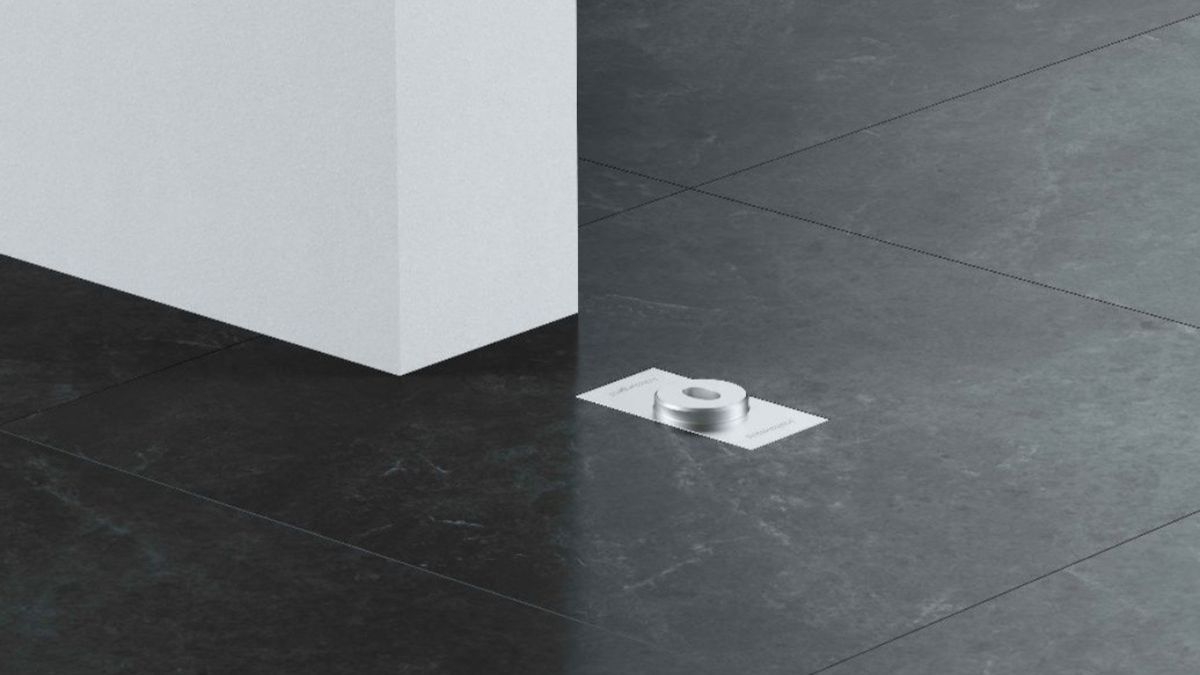

Floor plate Flush can be milled into the floor in indoor situations, even when there is no threshold. This means that the floor plate is level with the floor. This not only gives a clean result, but it also ensures that the space under the door is only 7mm. This again contributes to a sleek, neat look in the interior.

Available in square or round design

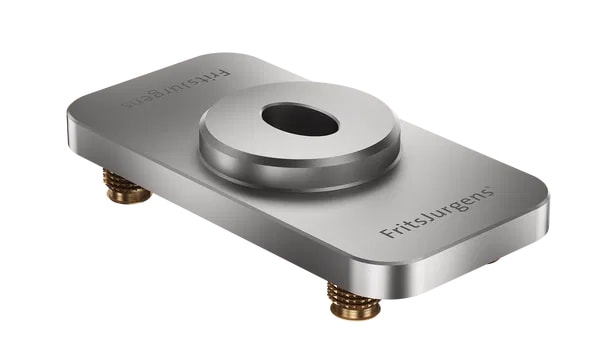

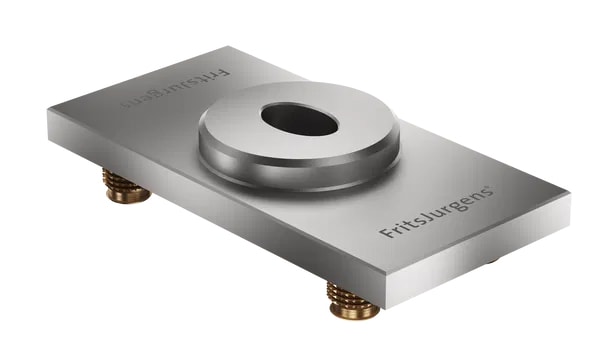

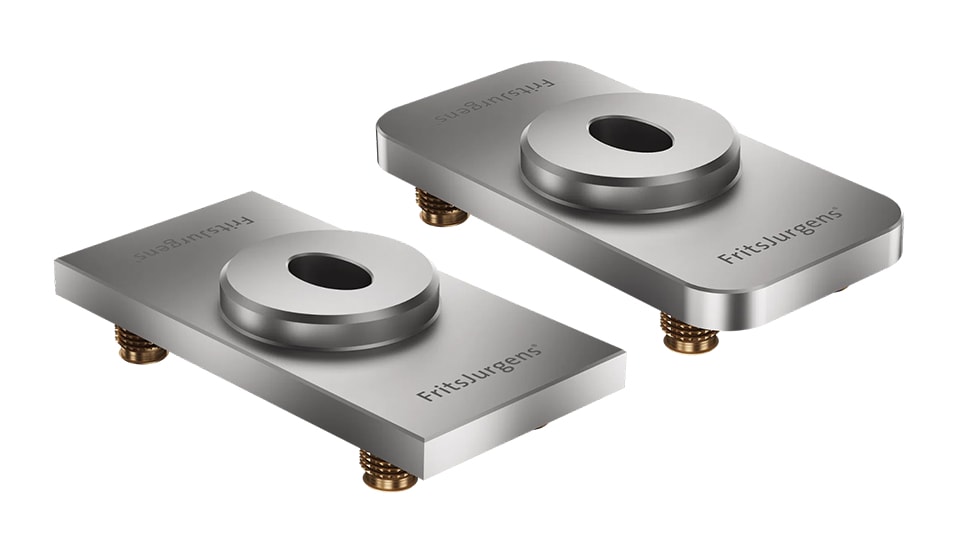

The floor plate Flush is available in two versions: one with rounded corners and one with square corners, allowing for easy integration into the threshold. The choice between these designs depends on how the floor plate will be incorporated into the threshold.

The floor plate is flush with the threshold, occupying minimal space and leaving only 7 mm of clearance under the door. This design ensures a sleek appearance with a minimal gap.

Flush Floor Plate

Weatherproof thanks to unique curing procedure

The exterior floor plates are electropolished. Under the influence of electricity and chemicals, the contamination on the surface of the product is dissolved. A new, homogeneous chromium oxide skin is formed that is much thicker than the original skin. Electropolishing provides an extremely corrosion-resistant surface that cannot be obtained with any other surface treatment. This also makes the product surface easier to clean, and the corrosion resistance is extremely high.

Features

  • Square or round design for integration into the floor or threshold.
  • Flush with the floor or threshold for a clean look.
  • Suitable for internal or external pivot doors using System M+.
  • Electropolished for an extremely corrosion-resistant and weatherproof surface.
  • Four 8 mm pins.
  • Only 7 mm of space underneath the door.
  • Low profile and sleek design.
  • Hardened Stainless Steel (420 grade).
  • Size (MM): 80 x 40 x 11 mm

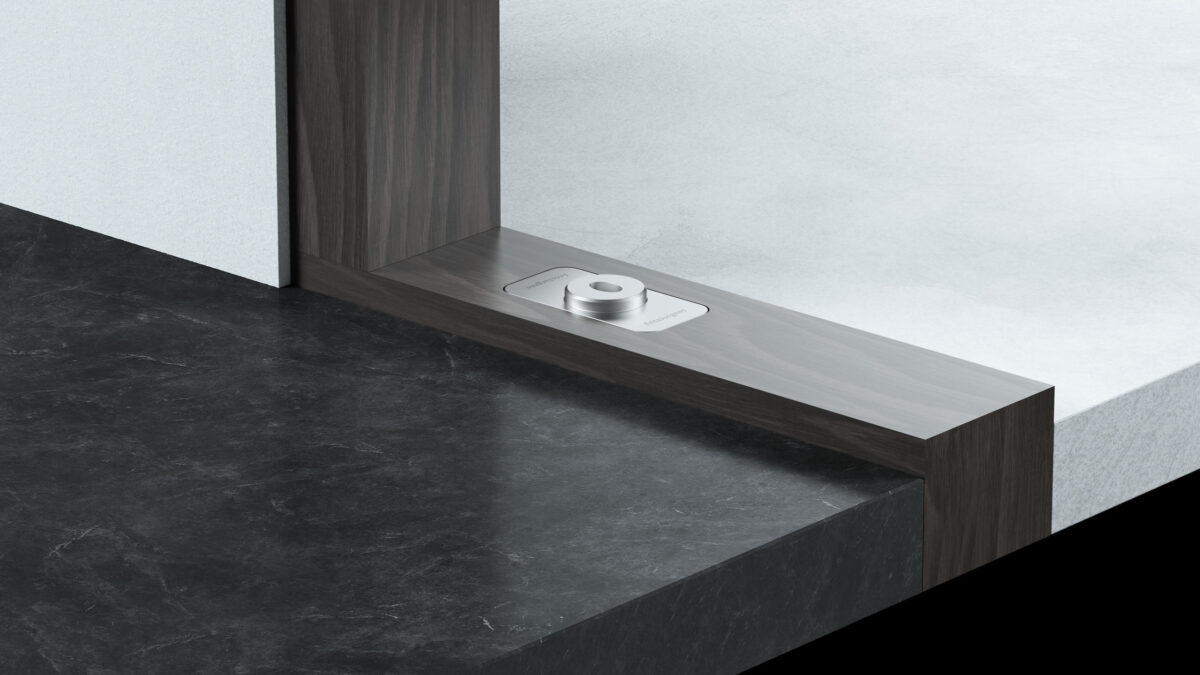

Floor-plate-Flush-rounded---exterior-situation-wood

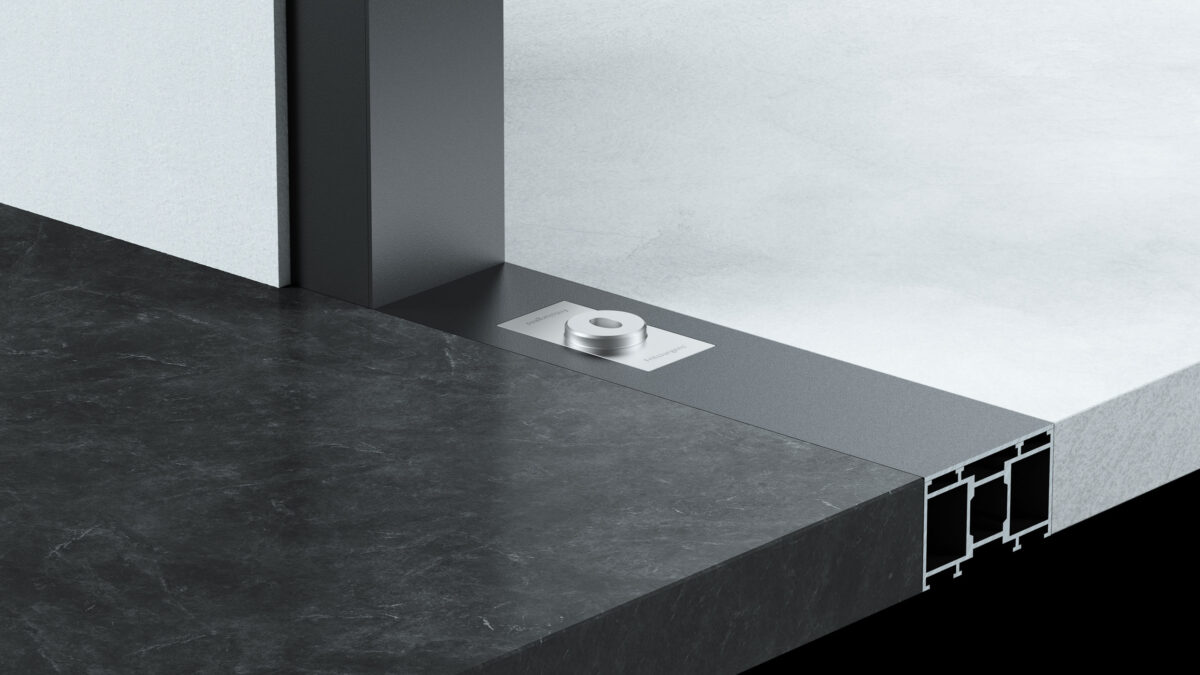

Floor-plate-Flush-square---exterior-situation-aluminum
Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
