SS
BLK Available in two finishes

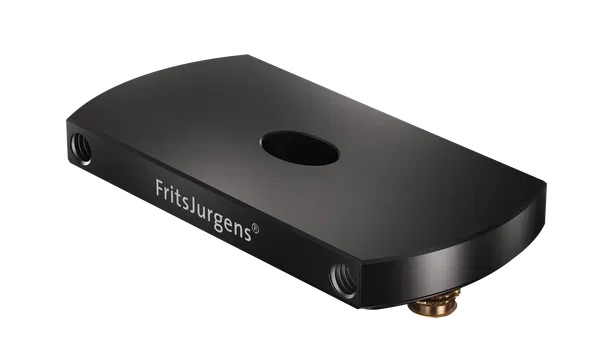

Crafted from high-quality material, the FritsJurgens standard floorplate offers excellent scratch resistance, helping it maintain its appearance over time and ensuring long-lasting performance and reliability.
8 Millimeters, 0 Worries
Radiant heating is no longer an issue for pivot doors. Radiant heating is usually installed 5 cm under the floor’s surface, leaving plenty of space for mounting the FritsJurgens floor plates.
A 500 kg door on a 40 x 80 mm floor plate?
It might seem impossible that a 500 kg door can rest on a 40 x 80 mm floor plate with 8 mm pins. The pressure of the door is, however, distributed evenly across the floor plate. In fact, the force on the floor is lower than that of a person in high heels. Meanwhile, the weight of the door, the pins, and a special, strong adhesive glue keep the plate in place.

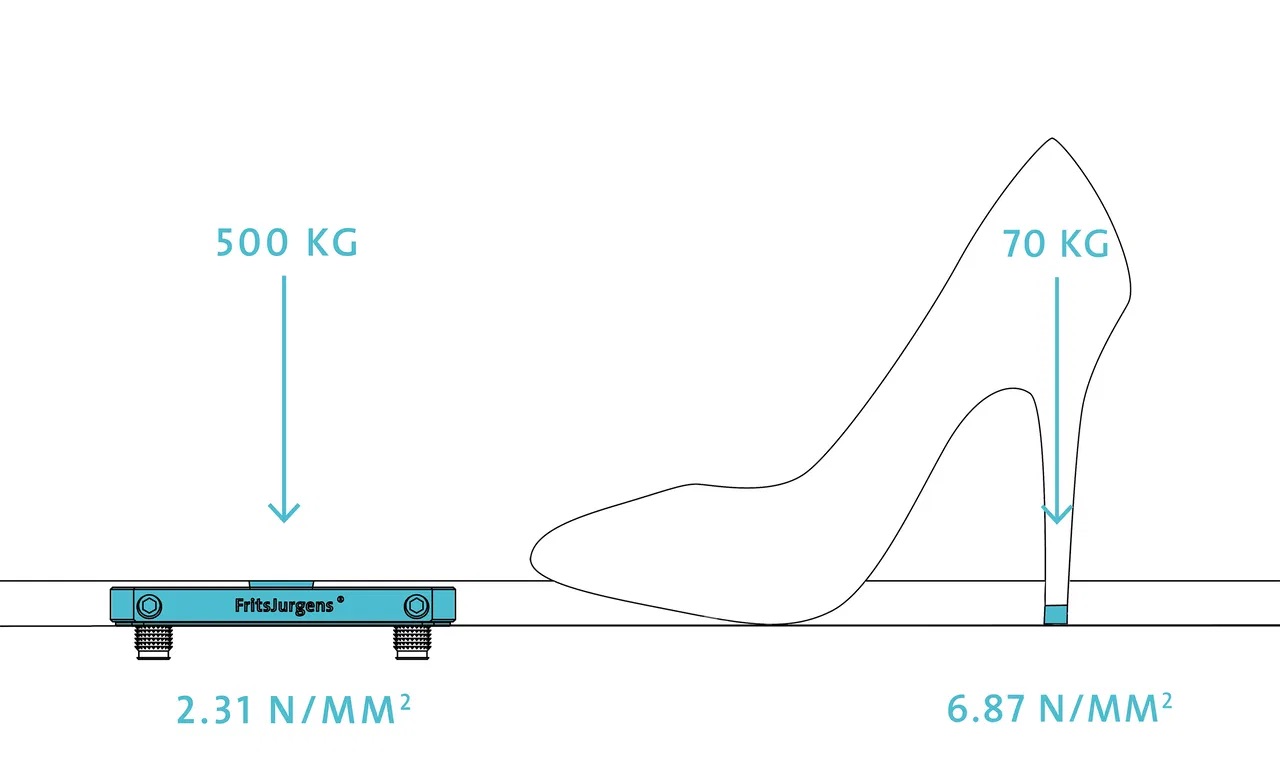

A 500 kg door with a FritsJurgens pivot bears on a 40 x 80 mm floor plate and produces a pressure load (Fw) of 2.31 N/mm2 with a door of 500 kg. In comparison, a person of 70 kg (154 lbs.) wearing high heels produces a pressure load (Fw) of 6.87 N/mm2.
Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
