Athmer Drop Seal
Fact Sheet
Door type Timber pivot doors
Max seal drop 20mm

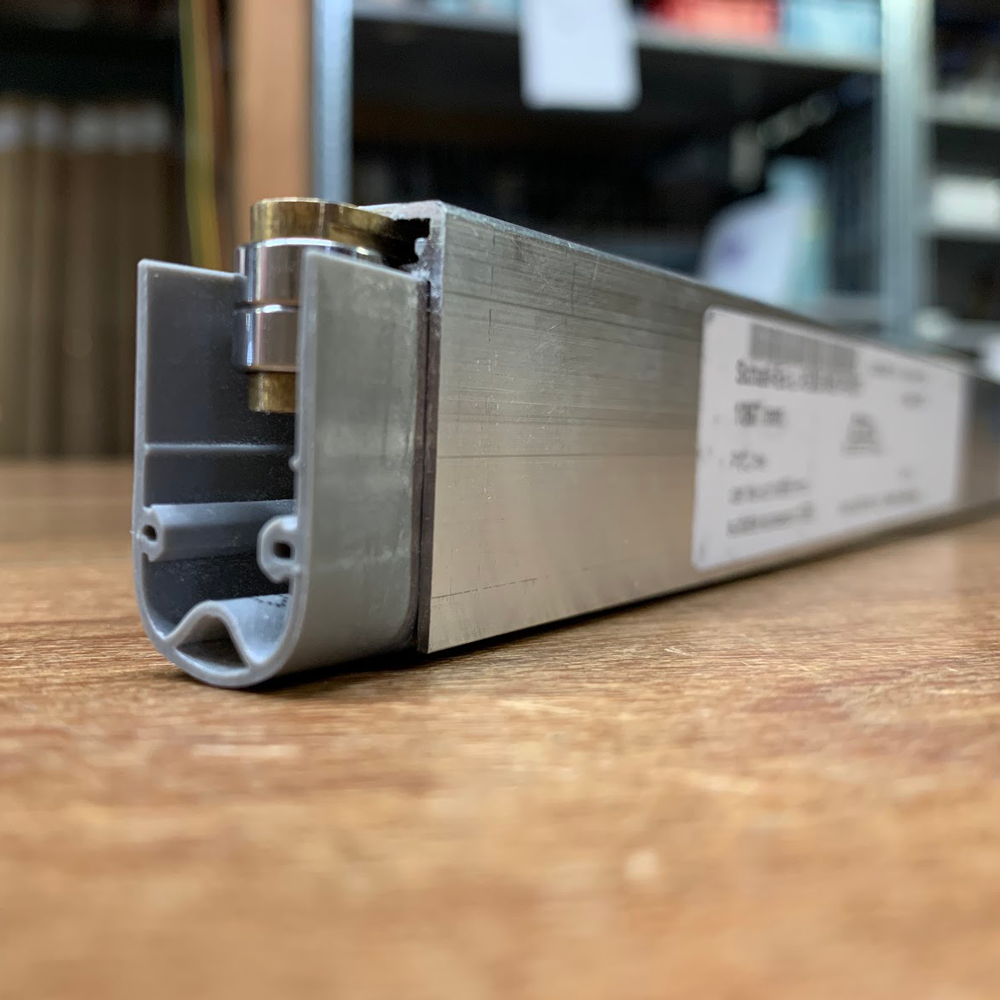

Profile 15x30mm, anodized aluminium
Max. length 2000mm
Cut Back length Variable. See descriptions

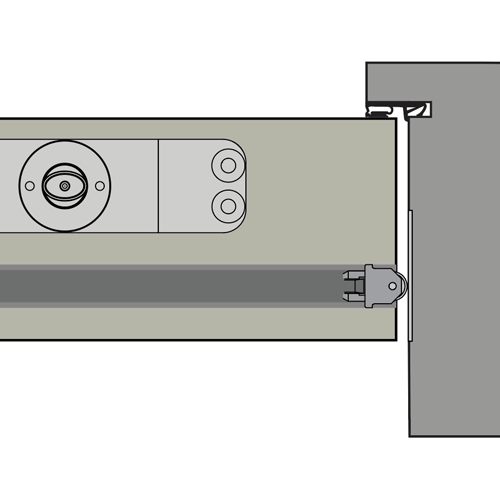

Positioning Top and /or bottom of door

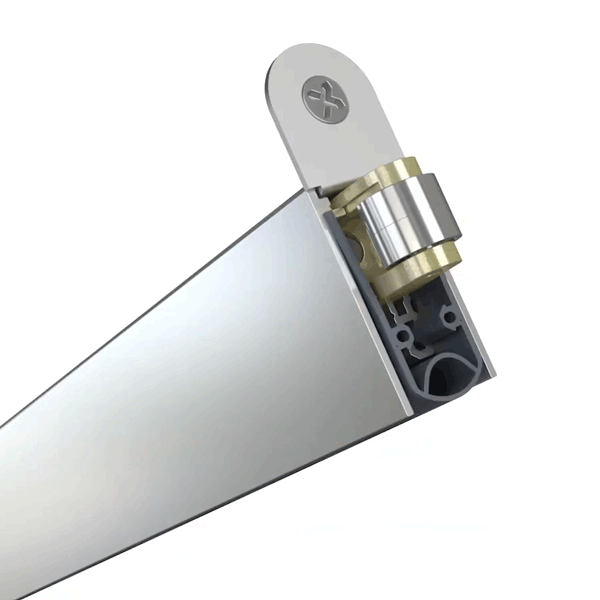

Single-actuating roller Max. roll protrusion 10mm
Noise Sound reduction of 50dB over a 12mm gap
Movement Parallel actuation & self-levelling
Seal colour Grey
Manufacturing 100% Made in Germany
Reliability 5 Year manufacturer’s guarantee, tested to 1,000,000 cycles
Order codes & available lengths

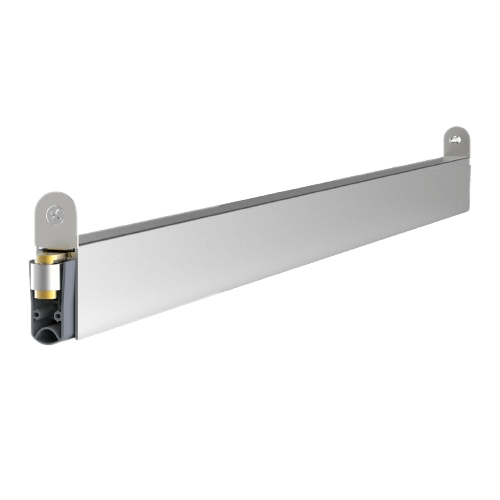

BAA946/0820 Schall-Ex® L-15/30 WS Pivot 820mm can be shortened to 635mm
BAA946/0920 Schall-Ex® L-15/30 WS Pivot 920mm can be
shortened to 760mm
BAA946/1070 Schall-Ex® L-15/30 WS Pivot 1070mm can be
shortened to 885mm
BAA946/1210 Schall-Ex® L-15/30 WS Pivot 1210mm can be
shortened to 1048mm
BAA946/1333 Schall-Ex® L-15/30 WS Pivot 1333mm can be
shortened to 1135mm
BAA946/1458 Schall-Ex® L-15/30 WS Pivot 1458mm can be
shortened to 1260mm
BAA946/1583 Schall-Ex® L-15/30 WS Pivot 1583mm can be
shortened to 1385mms
BAA946/1708 Schall-Ex® L-15/30 WS Pivot 1708mm can be
shortened to 1510mm
BAA946/1833 Schall-Ex® L-15/30 WS Pivot 1833mm can be
shortened to 1635mm
BAA946/2000 Schall-Ex® L-15/30 WS Pivot 2000mm can be
shortened to 1885mm
BAA946/2150 Schall-Ex® L-15/30 WS Pivot 2150mm can be
shortened to 2010mm
BAA946/2335 Schall-Ex® L-15/30 WS Pivot 2335mm can be
shortened to 2135mm
BAA946/ASS Optional actuating roller plate Satin Stainless
