New 40 & 70mm Top pivots

A pivot hinge system by FritsJurgens consists of a pivot hinge in the bottom of the door and a top pivot in the top of the door or in the ceiling. The top pivot is the top side of the pivot point and anchors the pivot door in the ceiling.

An Overview Of The New 40 & 70mm Top Pivots

Make more of your pivot door design within your available opening space with FritsJurgens’ new top pivot range.

The trusted FritsJurgens design and functionality can now provide you with more options for your project.

Maximum use of available opening | Same door width, wider passage | Trusted FritsJurgens door movement

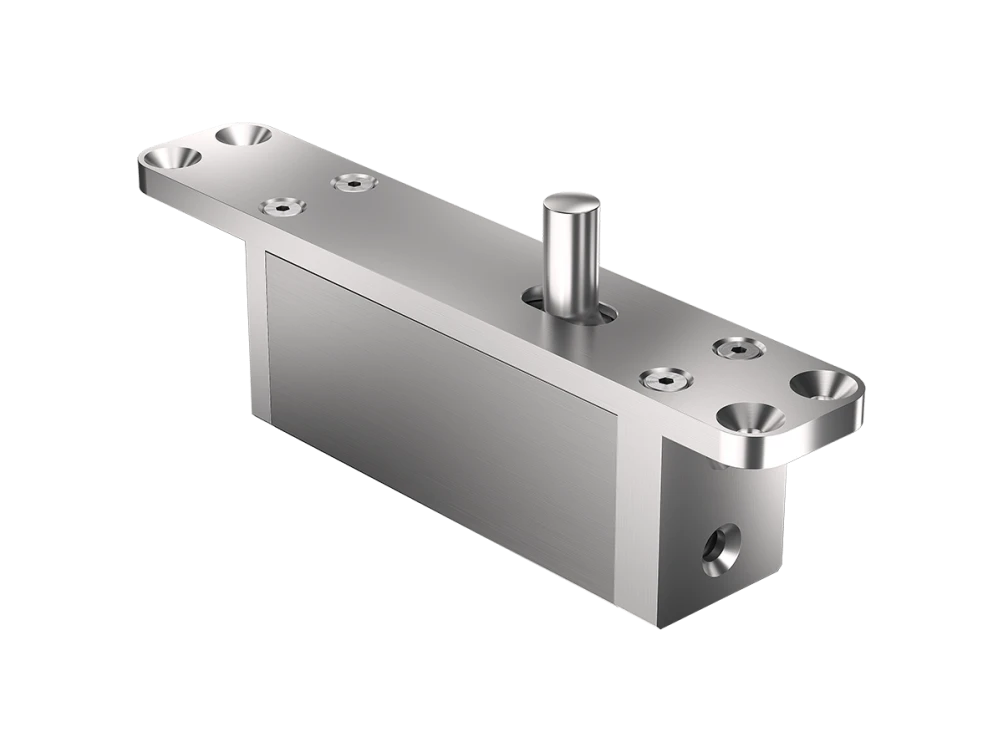

70mm Top Pivot

Suitable for: System One, System 3, System M, System M+

• Placement inside the door
• Pivot point from 70 mm to middle placement
• All-rounder: suitable for almost every pivot door and situation
• ADA-compliant pivot doors

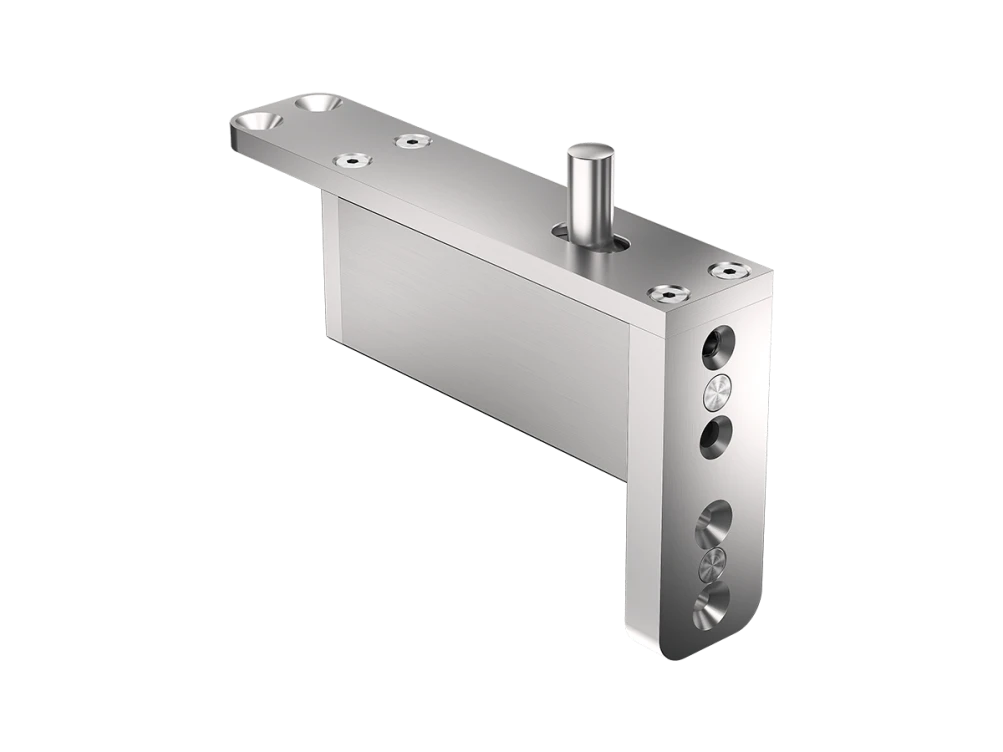

40mm Top Pivot

Suitable for: System M, System M+

• Placement inside the door
• Fixed pivot point at 40 mm
• Maximum clear width and hardly any unused space
• Pivot door is minimally present in open position
• Ideal for construction and renovation with standard widths

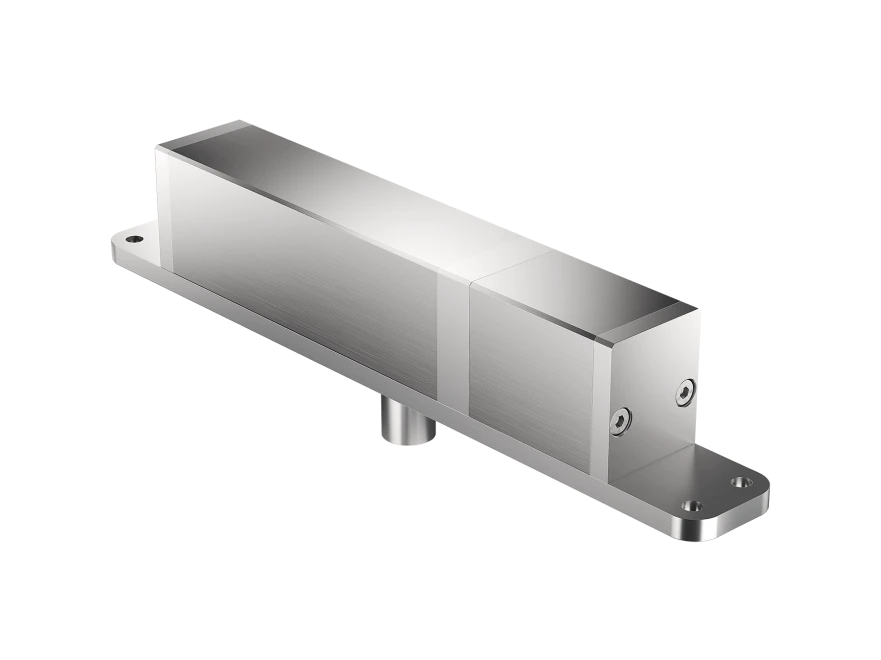

Top pivot Reversed (sits in the top Jamb)

Suitable for: System One, System 3, System M, System M+

• Placement inside the ceiling
• Pivot point from 130 mm to middle placement
• Adjustable from the ceiling instead of the door’s side
• For extra thin door frames and bigger glass openings

Available from the second half of 2022

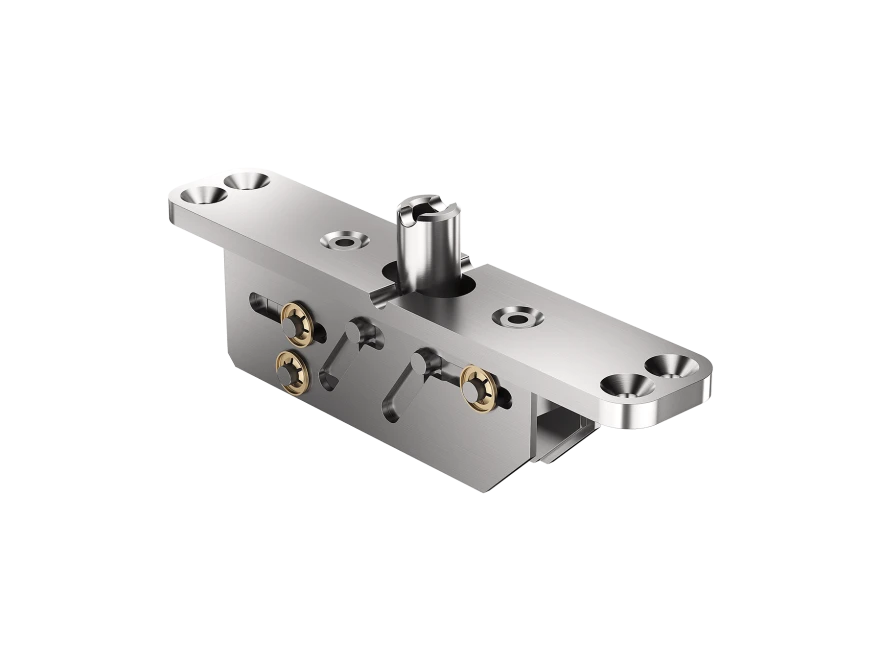

Top pivot Cable Grommet

Suitable for: System One, System 3, System M, System M+

• Placement inside the door
• Pivot point from 91 mm to middle placement
• Designed to easily pull cables through the top pivot

COMPARE THE TOP PIVOTS

Specifications Top Pivot 70mm Top Pivot 40mm Top pivot Cable Grommet
Pivot point from edge of door Flexible from 70 mm 40mm Fixed Flexible from 91 mm
Placement type Side and middle placement Side placement only Side and middle placement
Top pivot placement Top of door Top of door Top of door
Adjustment Side of door Side of door Side of door
Suitable for System One, System 3, System M, System M+ System M+ System One, System 3, System M, System M+

Hidden Perfection in Pivoting Hinge Systems

FritsJurgens Pivot Doors: Elegant frameless doors with built-in hinges

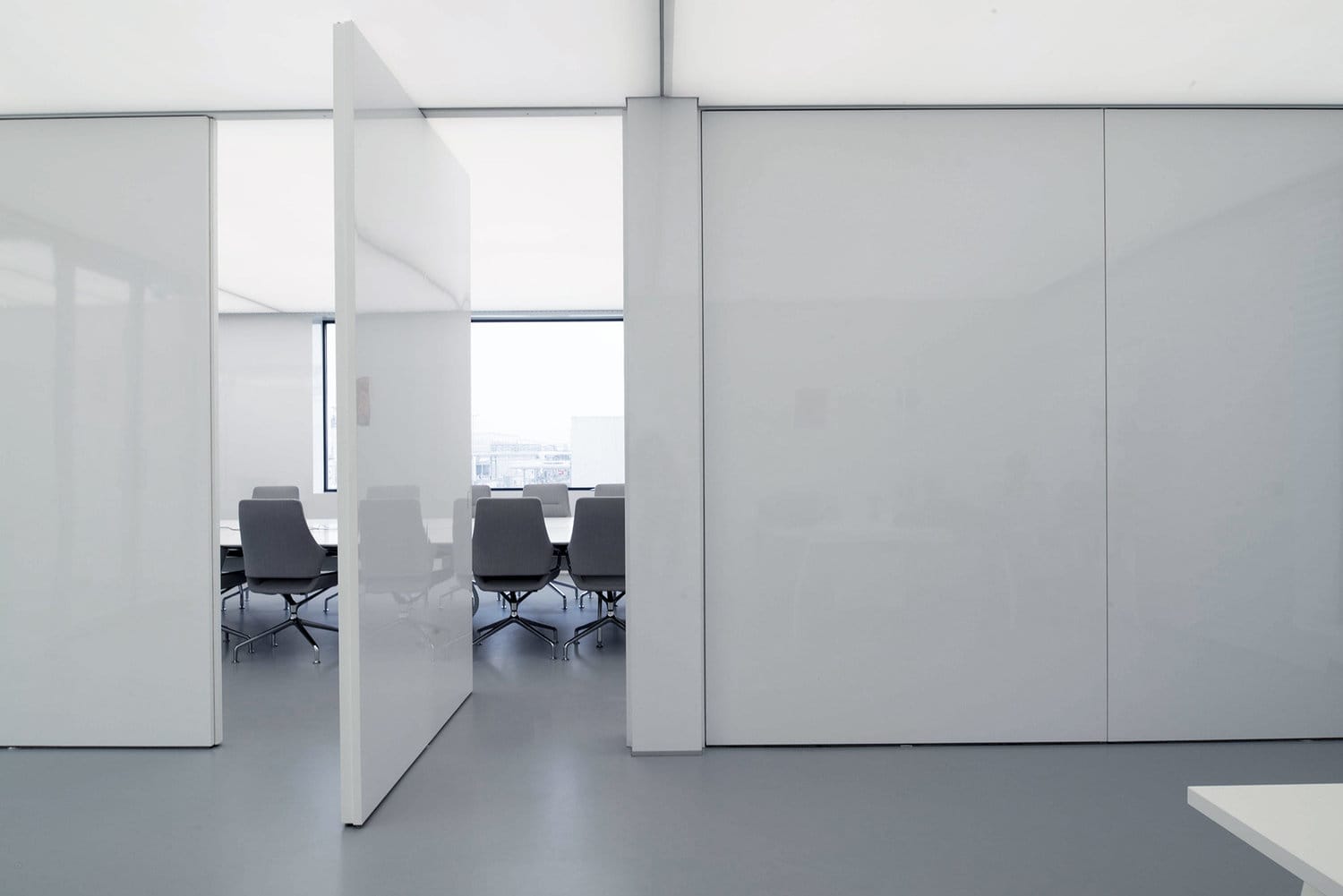

A pivot door is a frameless door that rotates around its vertical axis and can be opened to both the left and the right. It is not only functional but also a very attractive solution without frames, mountings or slats.

Pivot doors are movable walls. In a closed position they are virtually invisible; in an open position they can determine the space. It is precisely this that is the strength of the pivot door: it is a rotating part of a wall that can influence space, functionality and perception.

The FritsJurgens Pivot Door Hinge Systems

The FritsJurgens pivot door systems are unique in that there are no structural elements in the floor or the ceiling. This hinge is fully integrated into the top and bottom of the door, which means that outside the door, only one small floor and ceiling plate needs to be fitted. A virtually invisible system that can be used simply in both existing and new situations.

FritsJurgens pivot door hinges can be fitted in doors of all conceivable lengths and widths up to a maximum weight of 500 kg. The door should be a minimum of 40 mm thick and can be made of any type of material: glass, steel, wood, etc.

Curious about the endless possibilities of pivot door systems? Contact us for more design ideas to take your pivot door design to the next level.
