PIVOT DOOR HINGE SYSTEMS

by Fritsjurgens

The Perfect Pivot Hinge for the Perfect Pivot Door. Design without limitations. The most innovative pivot hinge systems brought to you by Bellevue Architectural.

PIVOT DOOR HINGES FOR ANY TYPE OF DOOR

FritsJurgens pivot hinge systems are suitable for any type of interior or exterior door, both for pivot doors without and with frame. The systems are suitable for a wide range of material, such as glass doors, steel doors, steel doors with glass, wood, solid and antique doors.

The pivot hinges can be applied both in commercial and residential environments. In addition, FritsJurgens has solutions in the field of soundproof doors, fire-resistant doors, draft-proof doors, burglar-resistant doors and combinations with wind- and waterproof profiles.

System M

Designed for self-closing pivot doors that swing 90 or 180 degree

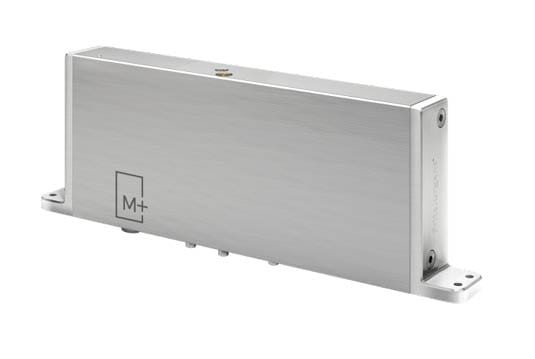

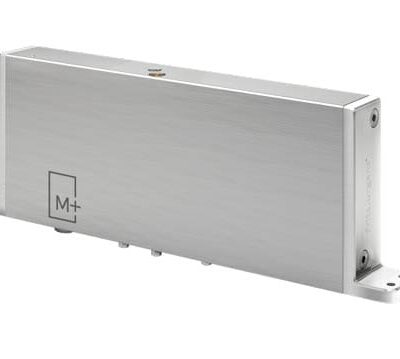

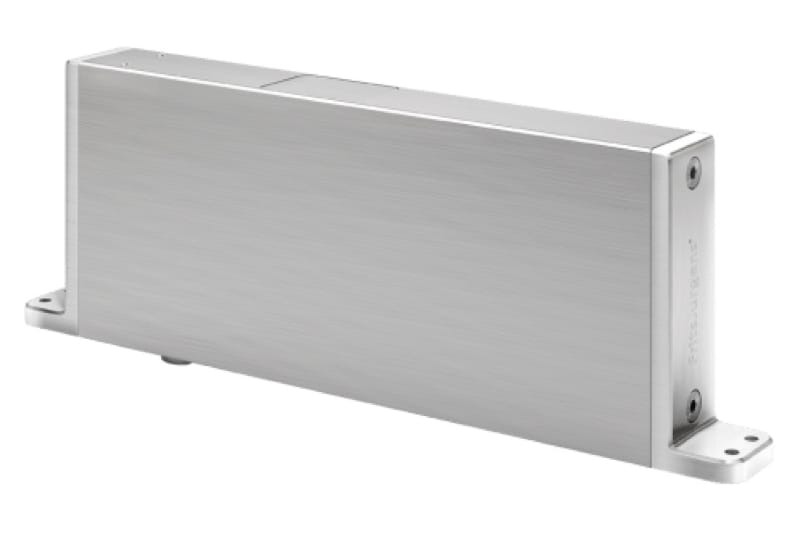

System M consists of a top and bottom pivot and their mounting plates. It utilises the same Top Pivot and small Ceiling Plate as the other FritsJurgens pivot hinge Systems. The Bottom Pivot/Closer is set into the Floor Plate which provides easy adjustment of the 0° position of the door to ensure installation to absolutely perfection.

When the door is closed, the System is virtually invisible. No nasty floor closer coverplate to hide, no getting the jackhammer out to install a closer cement box; System M is mortised entirely in the door.

System 1

A Free Swinging Pivot – 500Kg Capacity

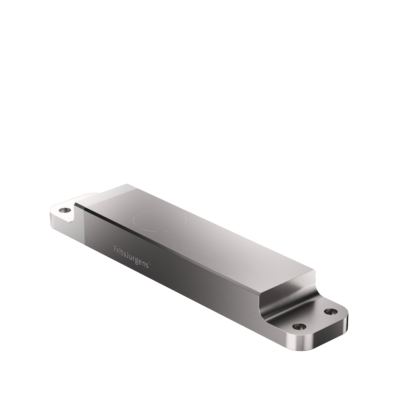

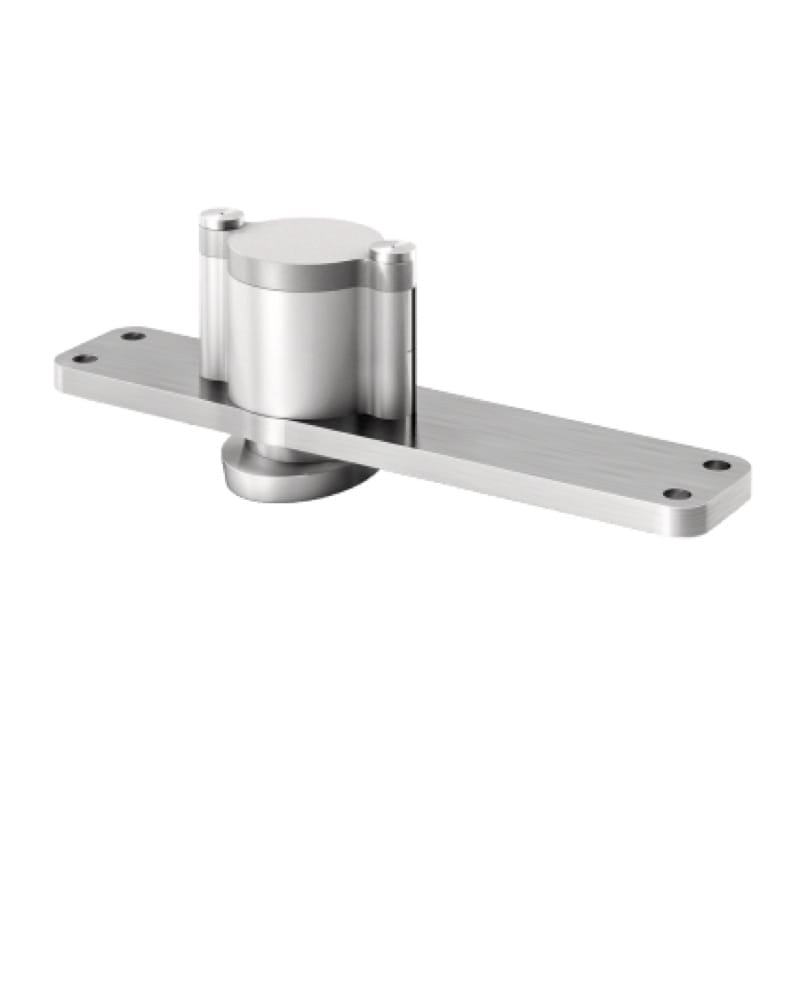

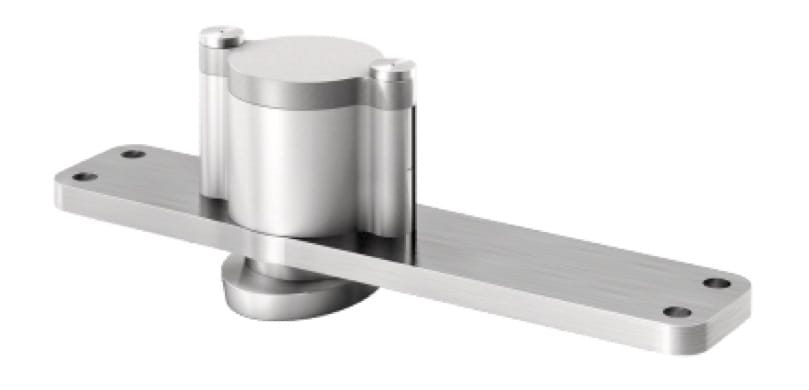

FritsJurgens System One excels in its simplicity. One pivot point. Rotation of 360º or 90º in combination with doorframes.

The performance of System One is outstanding. The pivot hinge system is suitable for large, heavy and tall doors. The possibilities are endless.

Due to the high load-bearing capacity of System One of up to 1100 Lb, there are virtually no restrictions on the design of the pivot door

System 3

Designed for doors that swing 360 degree – mounted in the centre of the door only.

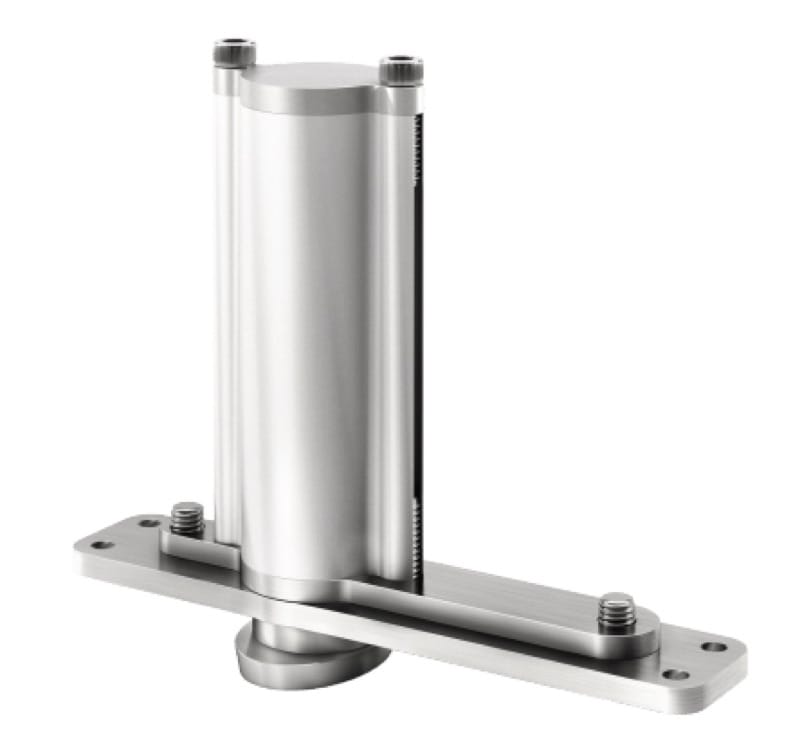

FritsJurgens® System 3 has an extensive arsenal of functions: rotation, hold positions, and damping. System 3 can turnthrough 360º and is characterised by a hold position at every quarter of a circle.

Thanks to the patented bearing configuration of the System 3 pivot, relatively little force is required to get the door moving.

The upper and bottom cam are working in the opposite directions. Therefore the force on the mid cam is nil. This creates a perfectly balanced system suitable for high-traffic use.

Hidden Perfection in Pivoting Hinge Systems

FritsJurgens Pivot Doors: Elegant frameless doors with built-in hinges

A pivot door is a frameless door that rotates around its vertical axis and can be opened to both the left and the right. It is not only functional but also a very attractive solution without frames, mountings or slats.

Pivot doors are movable walls. In a closed position they are virtually invisible; in an open position they can determine the space. It is precisely this that is the strength of the pivot door: it is a rotating part of a wall that can influence space, functionality and perception.

The FritsJurgens Pivot Hinge System

The FritsJurgens pivot door hinge is unique in that there are no structural elements in the floor or the ceiling. This hinge is fully integrated into the top and bottom of the door, which means that outside the door only one small floor and ceiling plate needs to be fitted. A virtually invisible system that can be used simply in both existing and new situations.

FritsJurgens pivot door hinges can be fitted in doors of all conceivable lengths and widths up to a maximum weight of 500 kg. The door should be a minimum of 40 mm thick and can be made of any type of material: glass, steel, wood, etc.
