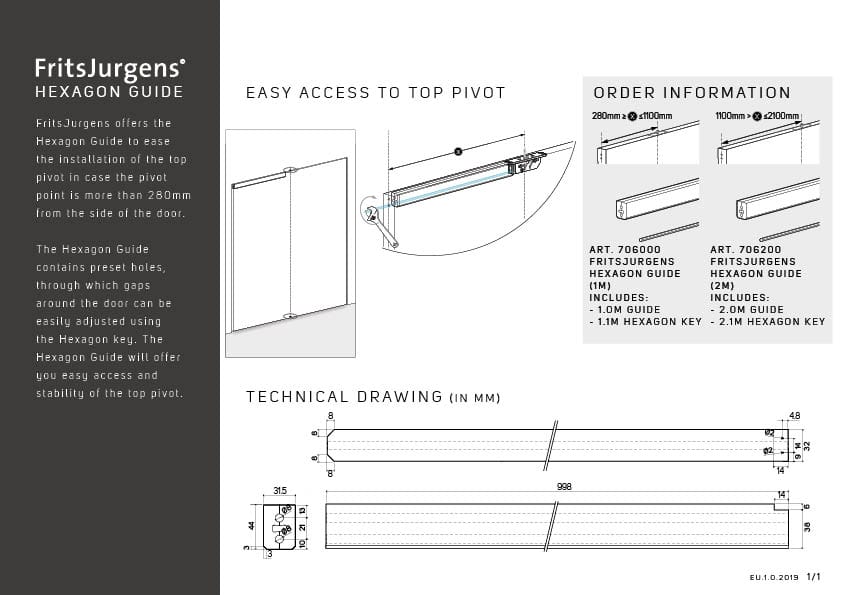

Hexagon Guide
Designed for applications that require a hold-open function without automatic door closure, this system is perfect for designers and door manufacturers looking to create elegant pivot doors without the need for a door stops.
Find the right pivot system for your project using our online Model Selector.
System FX Pivot Hinge Systems
- No structural elements in floor or ceiling
- Strong hold open at every 90 degree
- Load-bearing capacity: up to 209 kg
- Minimum door thickness: 40mm
- Quick and simple to install
- Maintenance free
- For new and existing situations
- Easily adjustable with the door in place
- Suitable for timber, steel, framed glass and massive cladded doors
- For single and double action doors
- For internal and external doors
- For commercial and residential environments

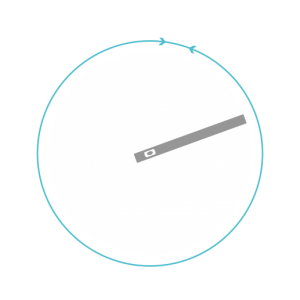

Movement
The System FX pivot door hinge can be opened to both the left and the right, turns through 360˚ and has a strong hold positions & closure function at every 90 degree. It is possible to combine System FX with door frames; in this case the door rotation is 90˚.
Intelligent Hold-Open Functionality
Unlike traditional hold-open pivot systems, the System FX offers an intuitive self-centring feature. When positioned at 90 degrees open, if nudged out of place by up to 10-degree, the door will automatically return to its hold-open position. Similarly, when in the closed position (0 degrees), if nudged open by 10-degrees or less the door will self-close.
Positioning
System FX pivot door hinge is highly suitable for:

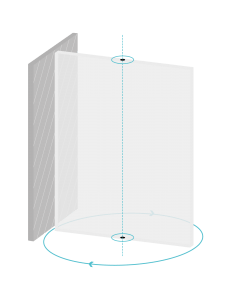

360° Rotation

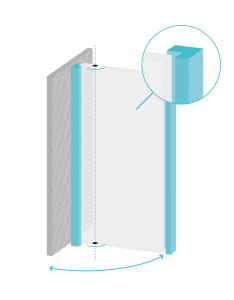

90° Rotation
(In combination with door frames)
Ceiling Plate
A stainless-steel ceiling plate is fitted in the ceiling. The pin of the top pivot fits seamlessly into the hole in the ceiling plate.
Top Pivot
The top pivot is integrated into the top of the door and uses a so-called pin/hole connection. The pin is fixed to the top pivot and drops into the hole in the ceiling plate when this is turned.

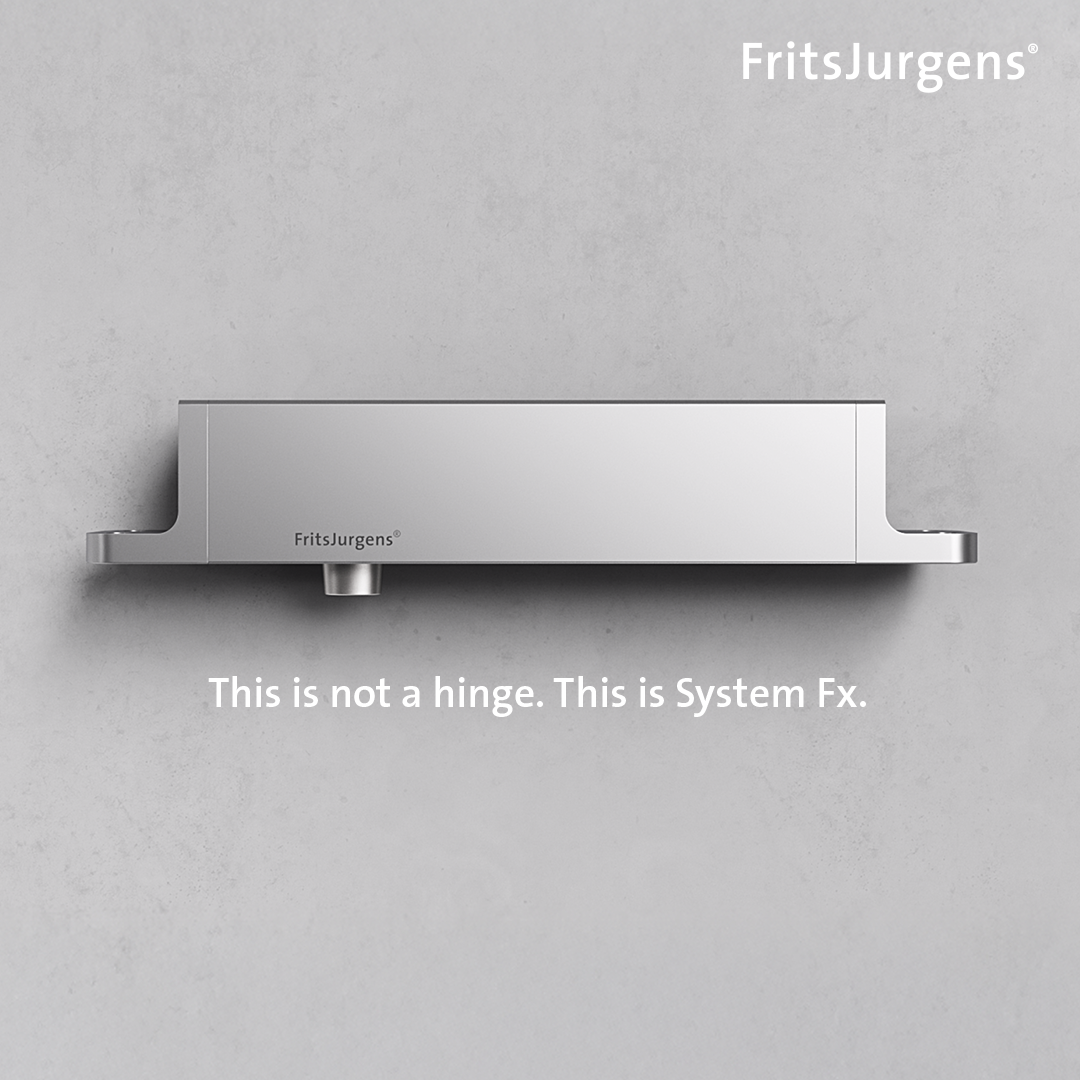

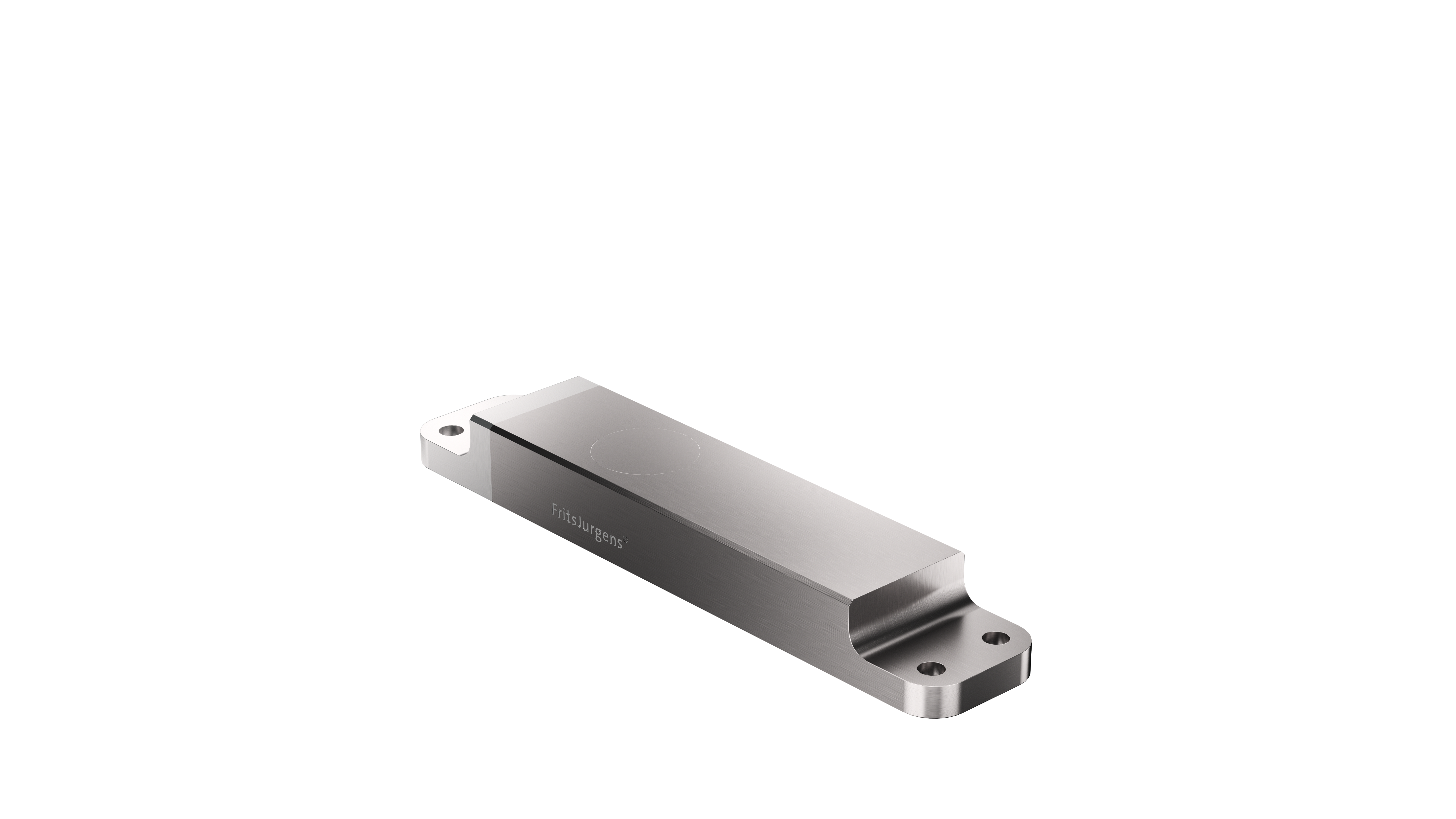

System FX
System FX is integrated into the lower part of the door. The oval base of the hinge is inserted into the slot in the floor plate.
Floor Plate
A stainless-steel floor plate with an oval recess is fitted to the floor. The base of the hinge fits seamlessly into the recess in the floor plate.
Specifications
Maximum Load-Bearing Capacity
209 kg
Minimum Door Thickness
40 mm
Minimum Dimensions around the Door for Fitting
| Below:
13 mm |
Above:
minimum 4 mm, maximum 10 mm |
Door/closing side: CAP CALCULATION
Hold Position
At every 90 degree
Minimum Distance from the Pivot Point to the Side of the Door
Fixed at 40mm – when using 40mm top & Bottom pivot Kit
Variable from 70mm – when using 70mm top & Bottom pivot Kit
Maximum Door Dimensions
Unrestricted up to a maximum weight of 209 kg (TYPE SELECTOR)
Intelligent Hold-Open Functionality
Unlike traditional hold-open pivot systems, the System FX offers an intuitive self-centring feature. When positioned at 90 degrees open, if nudged out of place by up to 10-degree, the door will automatically return to its hold-open position. Similarly, when in the closed position (0 degrees), if nudged open by 10-degrees or less the door will self-close.
Special Doors
FritsJurgens System FX is suitable for fire-resistant doors, soundproof doors, doors with draught-excluding, windproof and waterproof profiles, and burglar-resistant doors. For more information please contact one of our dealers or partners in your area.
Floating Floors / Suspended Ceilings
It is possible to fit a pivot door if the floor plate or ceiling plate is connected to the structural subfloor or ceiling.
Packaging
Delivered as a complete set with top pivot, floor plate, ceiling plate and fitting accessories.
Guarantee
10 year manufacturer’s guarantee.
Where to Buy
FritsJurgens Pivot Door Systems are available exclusively from Bellevue Architectural.
Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
