Justor 50mm Double Action Spring Hinge by Bellevue Architectural

Justor 50mm Double Action Spring Hinge - BIDA180A

DOUBLE ACTION SPRING HINGE – Max Weight 38kg @ 1000mm

Ideal for restaurants and kitchens
Timber, aluminium and metal doors
Supports up to 62kg for a 1000mm wide door (subject to door specs, see weight information)
Spring resistance 500,000 cycles
Resistance to extreme climatic conditions (cold and humidity)
Maximum resistance to bending
Torsion spring not coil
Variable door movement strength
90º or 180º working aperture
2 year manufacturer’s guarantee
Suitable for up to 50mm thick doors

Finishes

AS

Options

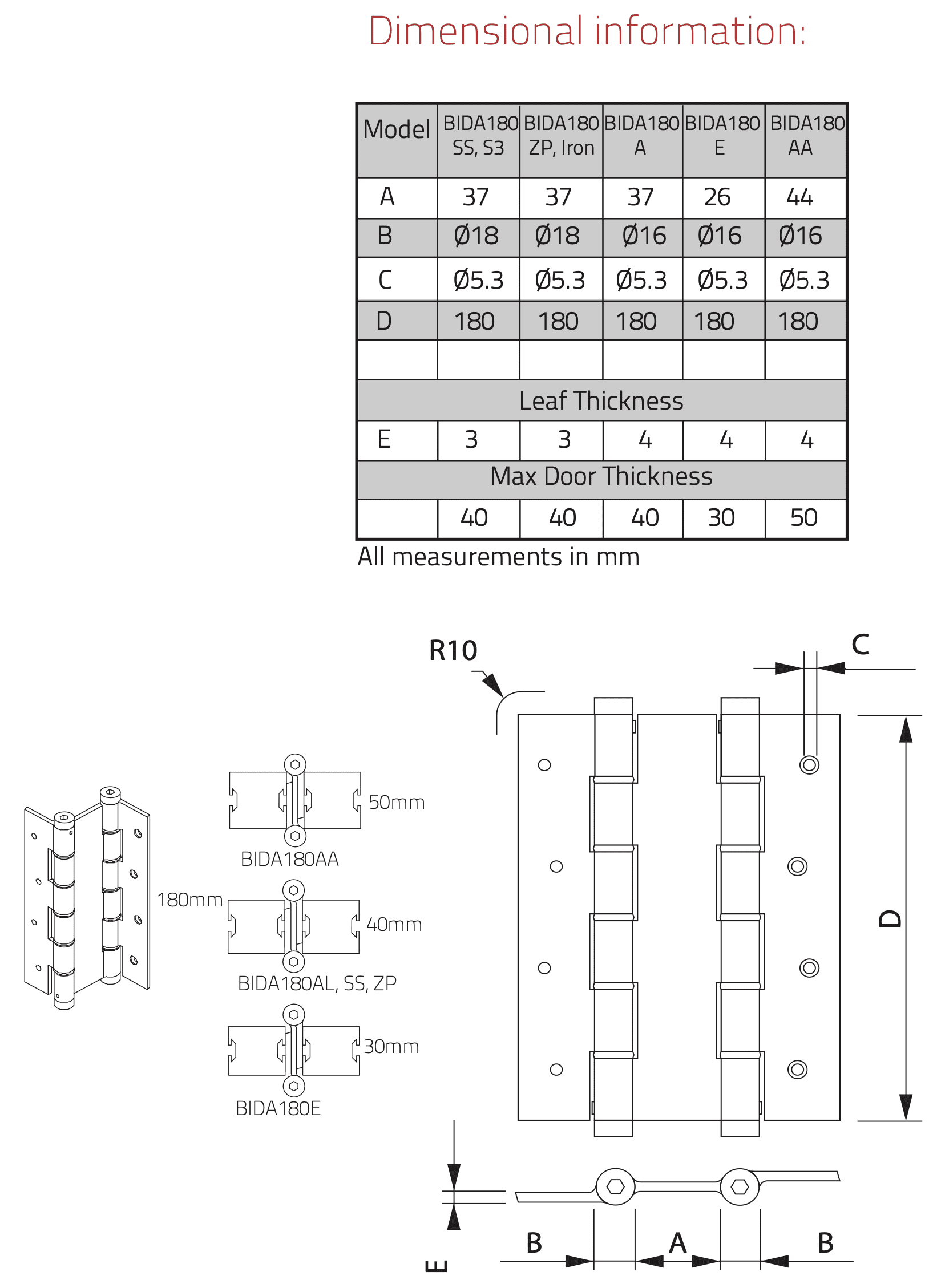

BIDA180A Dimensions

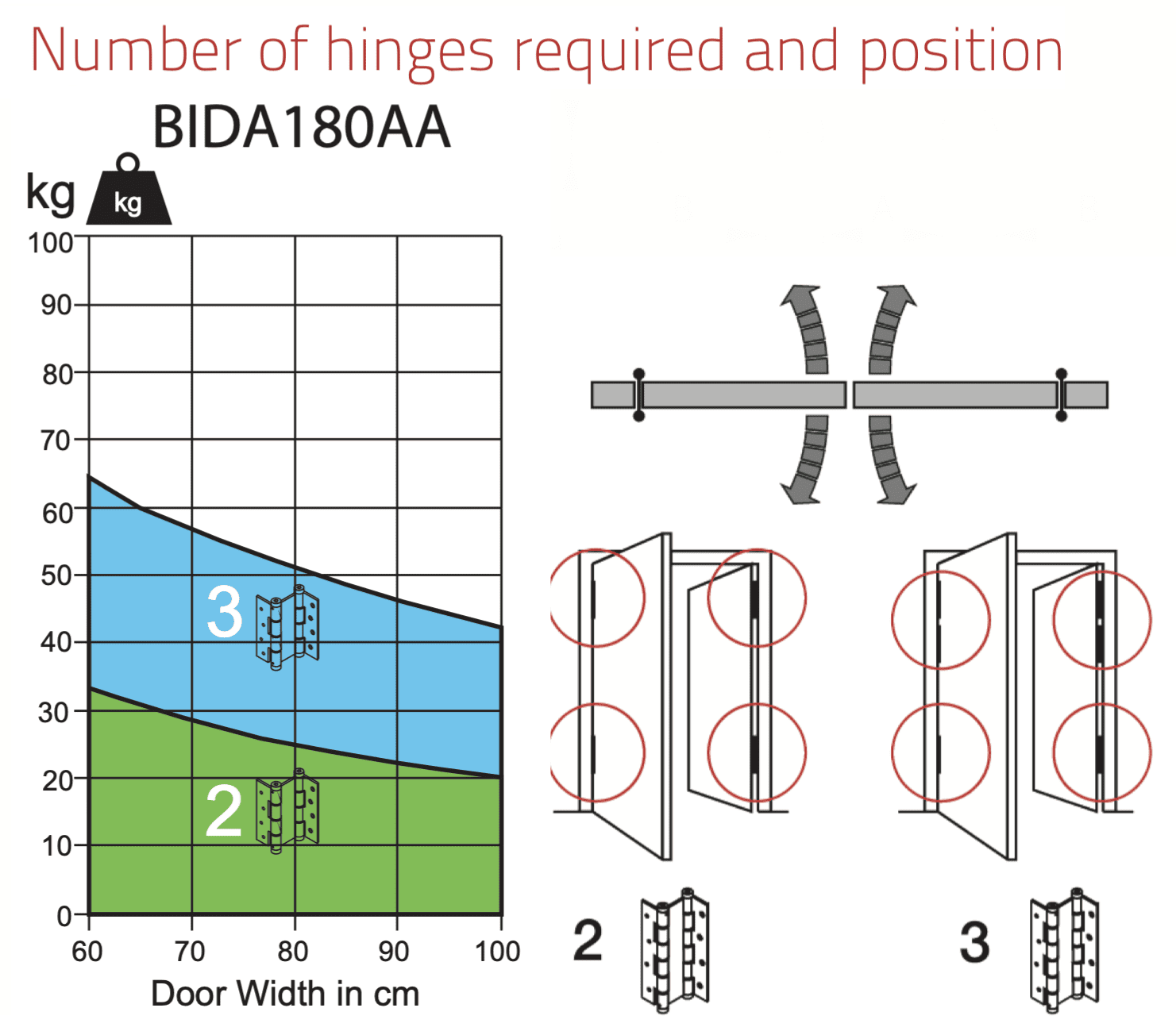

BIDA180A Weight Information

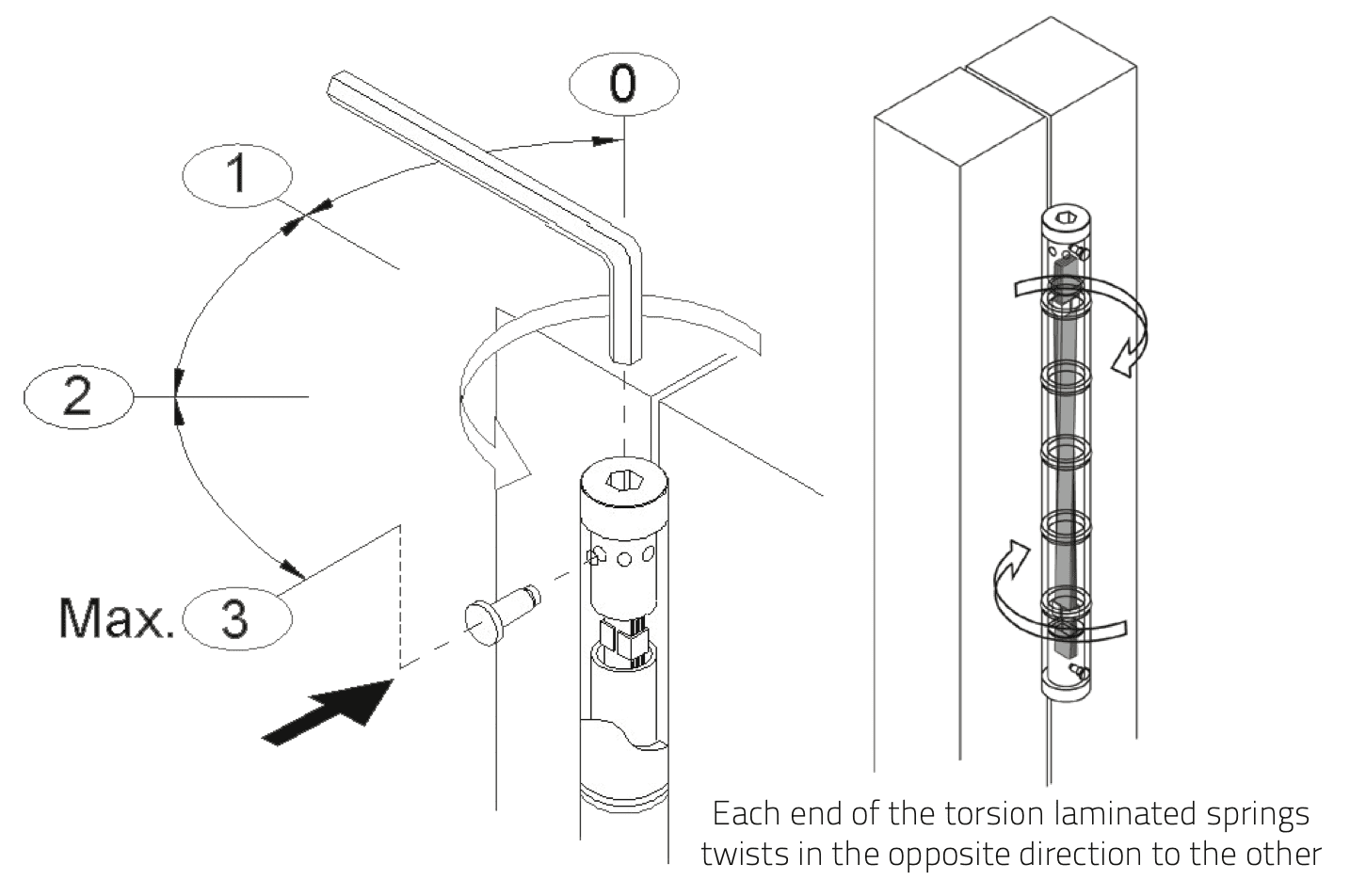

BIDA180A Adjustment Information

MATERIAL Aluminium
CATEGORY Double Action Spring Hinges - Justor Spring Hinges

TECHNICAL DOCUMENTATION TECHNICAL DOCUMENTATION

Justor 50mm Double Action Spring Hinge

Finishes

AS

DOUBLE ACTION SPRING HINGE – Max Weight 38kg @ 1000mm

Ideal for restaurants and kitchens
Timber, aluminium and metal doors
Supports up to 62kg for a 1000mm wide door (subject to door specs, see weight information)
Spring resistance 500,000 cycles
Resistance to extreme climatic conditions (cold and humidity)
Maximum resistance to bending
Torsion spring not coil
Variable door movement strength
90º or 180º working aperture
2 year manufacturer’s guarantee
Suitable for up to 50mm thick doors

MATERIAL Aluminium
TYPOLOGY Double Action Spring Hinges - Justor Spring Hinges

TECHNICAL DOCUMENTATION TECHNICAL DOCUMENTATION

JUSTOR SPRING HINGES DOCUMENTATION

CAD FILES

BIDA180A (DWG)

BIDA180 - COMPLETE COLLECTION

Justor Double Action Spring Hinge Installation Instructions
