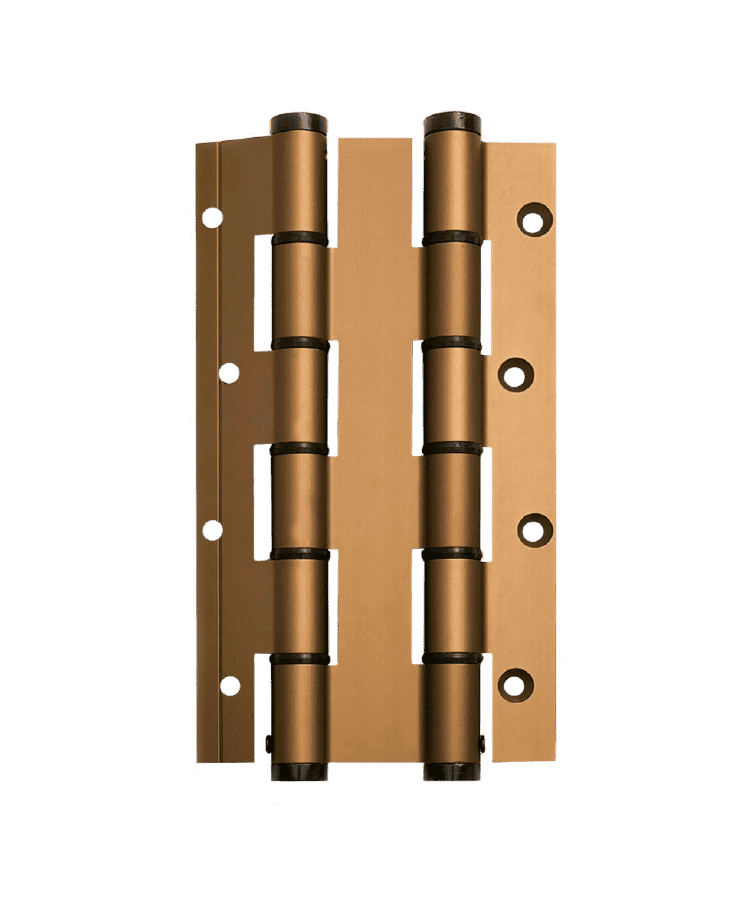

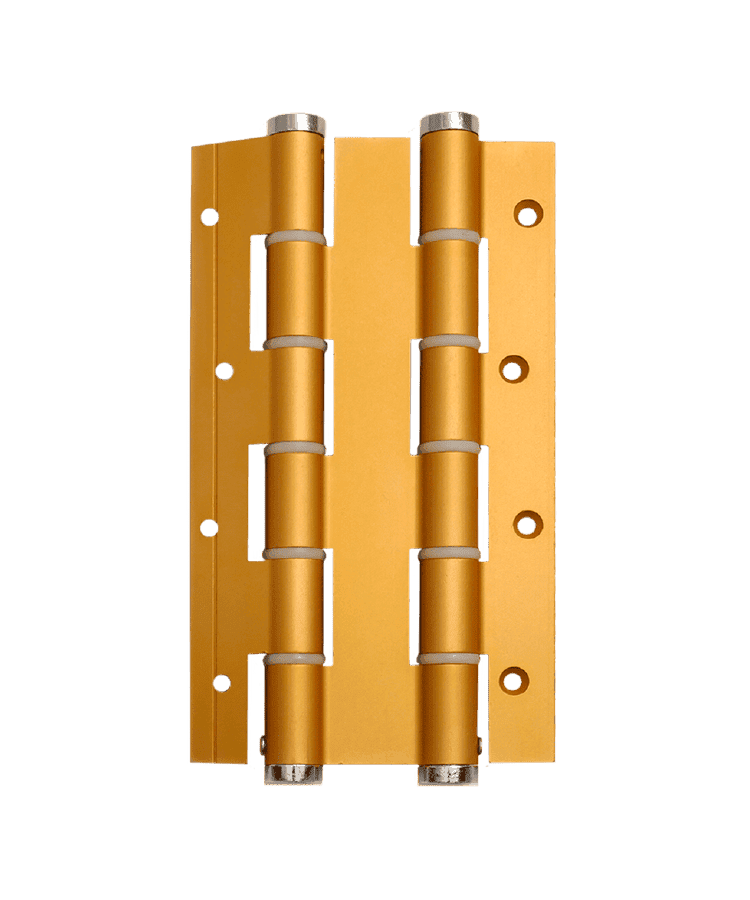

Justor Narrow Spring Hinge - BIDA180E - Max Weight 56kg @ 1000mm

Variable closing speed
Quick & simple installation

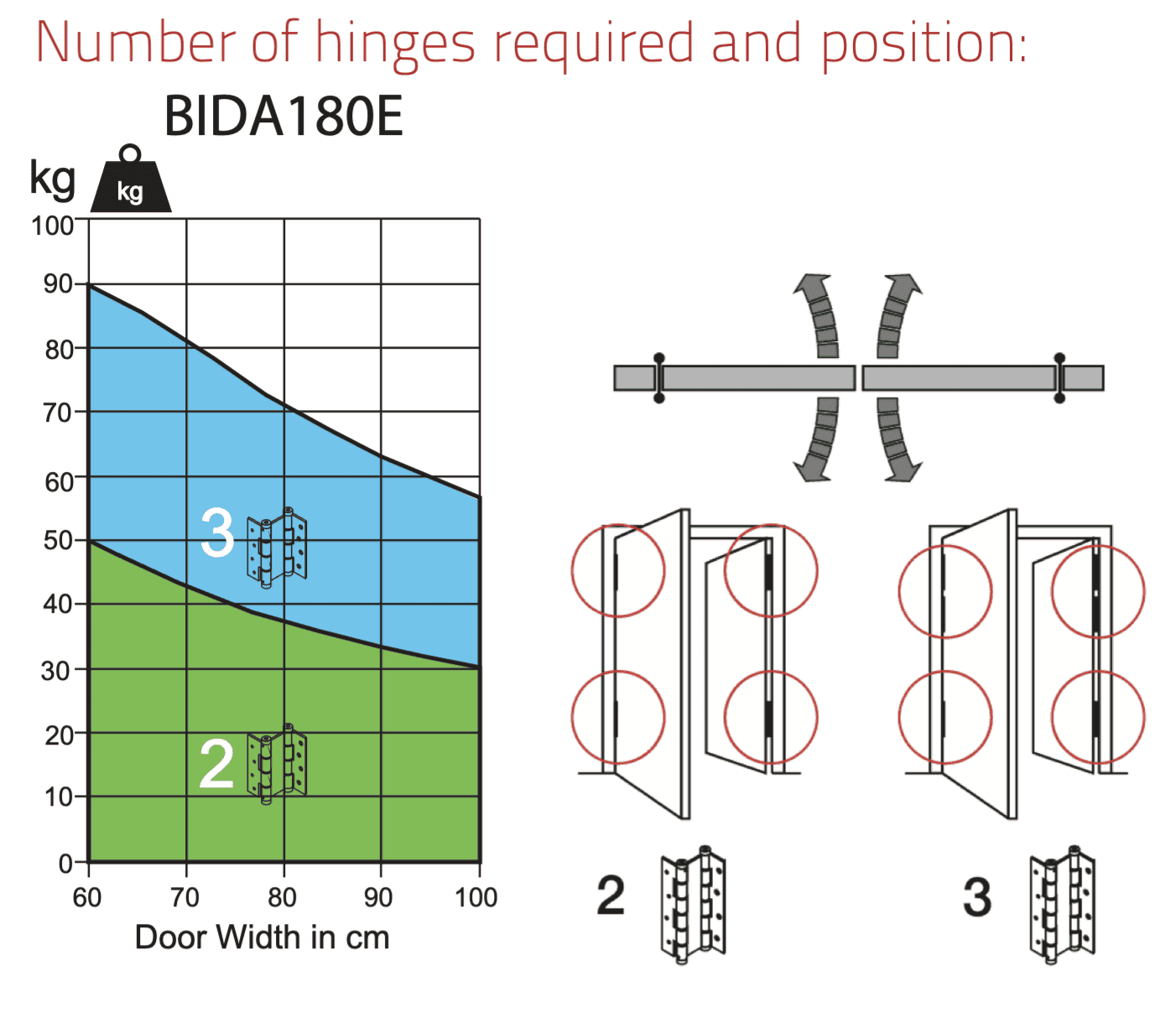

Supports up to 56kg for a 1000mm wide door (subject to door specs, see weight information)
90º or 180º working aperture
Suitable for residential and commercial.
Designed for door thickness up to 30 mm.
Resistant to extreme climates (cold & humidity)
Suitable with timber and aluminium or metal doors
Torsion spring not coil spring (tested to 500,000 cycles)
Repair kits available including spring, nylon or stainless spacer, caps & locking pins

Justor Narrow Spring Hinge

Variable closing speed
Quick & simple installation
Supports up to 56kg for a 1000mm wide door (subject to door specs, see weight information)
90º or 180º working aperture
Suitable for residential and commercial.
Designed for door thickness up to 30 mm.
Resistant to extreme climates (cold & humidity)
Suitable with timber and aluminium or metal doors
Torsion spring not coil spring (tested to 500,000 cycles)
Repair kits available including spring, nylon or stainless spacer, caps & locking pins

Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
