Entry Door Pulls

Small Entry Door Pulls

Elmes Of Japan Small Entry Door Pull by Bellevue Architectural

Elmes Of Japan Small Entry Door Pull - T10

Mounting Hole: Diameter 8mm / On Glass Doors 12×37mm
Mounting Screw: M6
Pitch: 25mm
Size: 113×64mm

T10-15-001
Cast Brass, Polished

Weight: 1.2kg

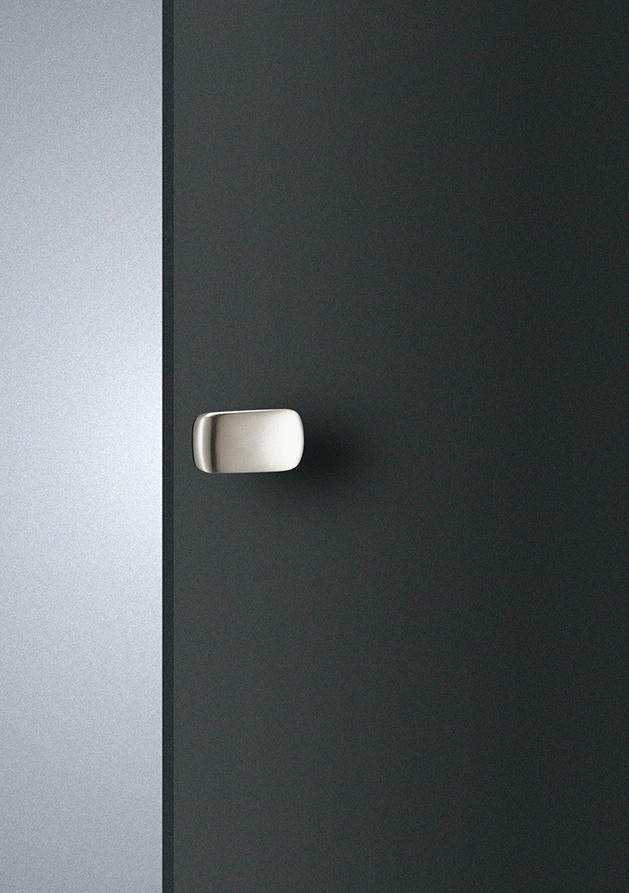

T10-26-038
Unicast(Aluminum), Anodized, Silver Color

Weight: 0.45kg

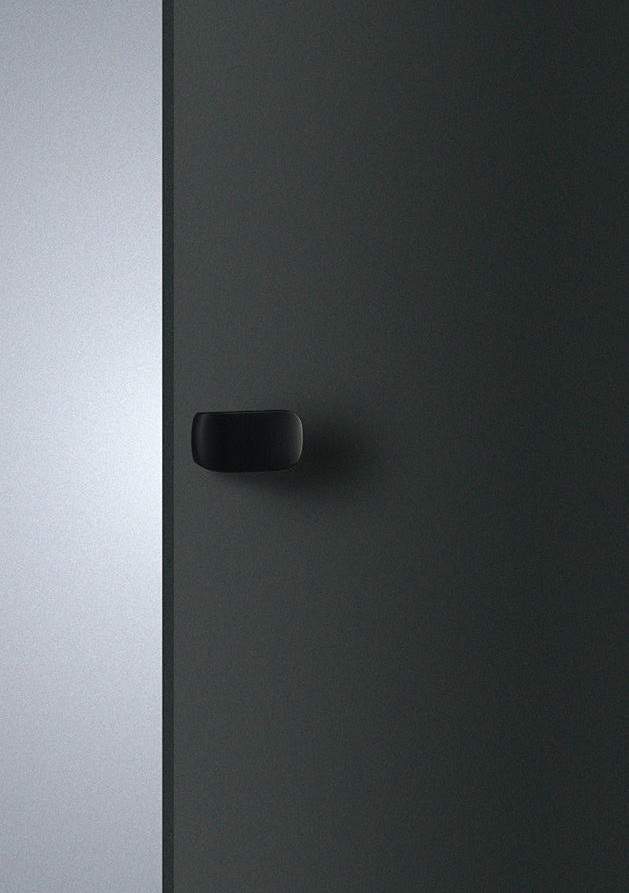

T10-26-121
Unicast(Aluminum), Blast, Anodized, Black

Weight: 0.45kg

Finishes

1
2
3

MATERIAL Cast Brass, Uni-cast Aluminium
CATEGORY Entry Door Pulls - Small Entry Door Pulls

TECHNICAL DOCUMENTATION TECHNICAL DOCUMENTATION

Elmes Of Japan Small Entry Door Pull

Finishes

1
2
3

Mounting Hole: Diameter 8mm / On Glass Doors 12×37mm
Mounting Screw: M6
Pitch: 25mm
Size: 113×64mm

T10-15-001
Cast Brass, Polished

Weight: 1.2kg

T10-26-038
Unicast(Aluminum), Anodized, Silver Color

Weight: 0.45kg

T10-26-121
Unicast(Aluminum), Blast, Anodized, Black

Weight: 0.45kg

MATERIAL Cast BrassUni-cast Aluminium
TYPOLOGY Entry Door Pulls - Small Entry Door Pulls

TECHNICAL DOCUMENTATION TECHNICAL DOCUMENTATION

Technical Documentation

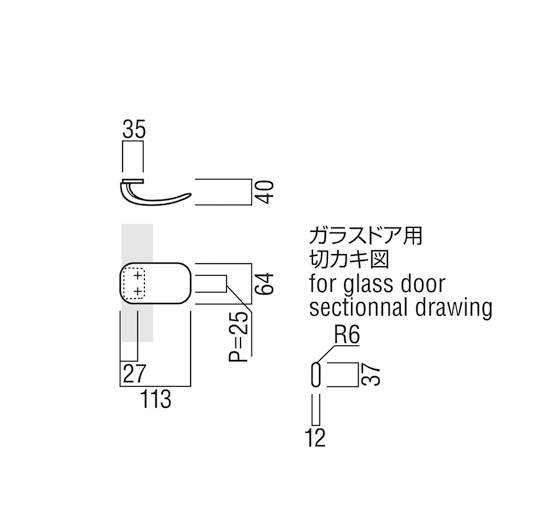

T10 Dimensions

Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
