System 3

360° Rotating Doors

The System 3 pivoting door hinge by FritsJurgens, has three functions: rotation, closing and hold positions. System 3 can turn through 360˚ and is characterised by a hold position at every quarter of a circle.

Find the right pivot system for your project using our online Model Selector.

FRITSJURGENS SYSTEM 3

  • No structural elements in floor and ceiling
  • Load-bearing capacity: up to 500 kg
  • Minimum door thickness: 40mm
  • Quick and simple to install
  • Maintenance free
  • For new and existing situations
  • Easily adjustable with the door in place
  • Suitable for timber, steel, framed glass and massive cladded doors
  • For double action doors
  • For internal and external doors
  • For commercial and residential environments

Movement

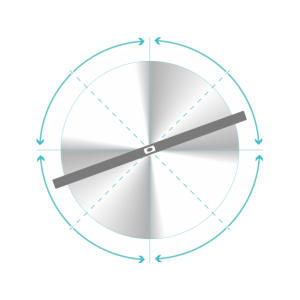

Thanks to the innovative design of System 3, the door requires a slight touch to start moving, then it continues to rotate by itself thanks to the patented spring construction.

The spring-loaded door turns from each 45º in both directions and stops in the desired direction.

The door comes to rest in the hold position after two movements thanks to precise damping.

Positioning

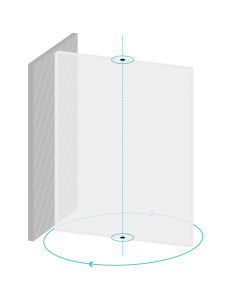

System 3 pivoting door hinge is highly suitable for:

360° Rotation

Ceiling Plate

A stainless-steel ceiling plate is fitted in the ceiling. The pin of the top pivot fits seamlessly into the hole in the ceiling plate.

Top Pivot

The top pivot is integrated into the top of the door and uses a so-called pin/hole connection. The pin is fixed to the top pivot and drops into the hole in the ceiling plate when this is turned.

System 3

System 3 pivot hinge is integrated into the lower part of the door. The oval base of the hinge is inserted into the slot in the floor plate.

Floor Plate

System 3 pivot hinge is integrated into the lower part of the door. The oval base of the hinge is inserted into the slot in the floor plate.

Specifications

Maximum Load-Bearing Capacity

500 kg

Minimum Door Thickness

40 mm

Minimum Dimensions around the Door for Fitting

Below:

13 mm

Above:

minimum 4 mm, maximum 10 mm

Door/closing side: CAP CALCULATION

Hold Position

0º, 90º, 180º en 270º

Minimum Distance from the Pivot Point to the Side of the Door

91 mm.

Maximum Door Dimensions

Width: 1000mm – 3800mm (MODEL SELECTOR)

Height: Unrestricted

Special Doors

FritsJurgens System3 is suitable for fire-resistant doors, soundproof doors, doors with draught-excluding, windproof and waterproof profiles, and burglar-resistant doors. For more information please contact one of our dealers or partners in your area.

Floating Floors / Suspended Ceilings

It is possible to fit a pivot door if the floor plate or ceiling plate is connected to the structural subfloor or ceiling.

Packaging

Delivered as a complete set with top pivot, floor plate, ceiling plate and fitting accessories.

Guarantee

10 year manufacturer’s guarantee.

Where to Buy

FritsJurgens Pivot Door Systems are available exclusively from Bellevue Architectural.

Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
