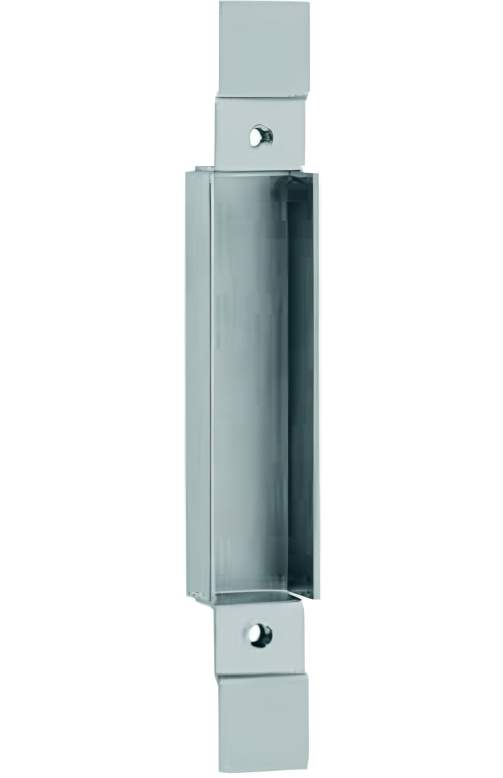

CEAM Fixing Box - BAC1XGP

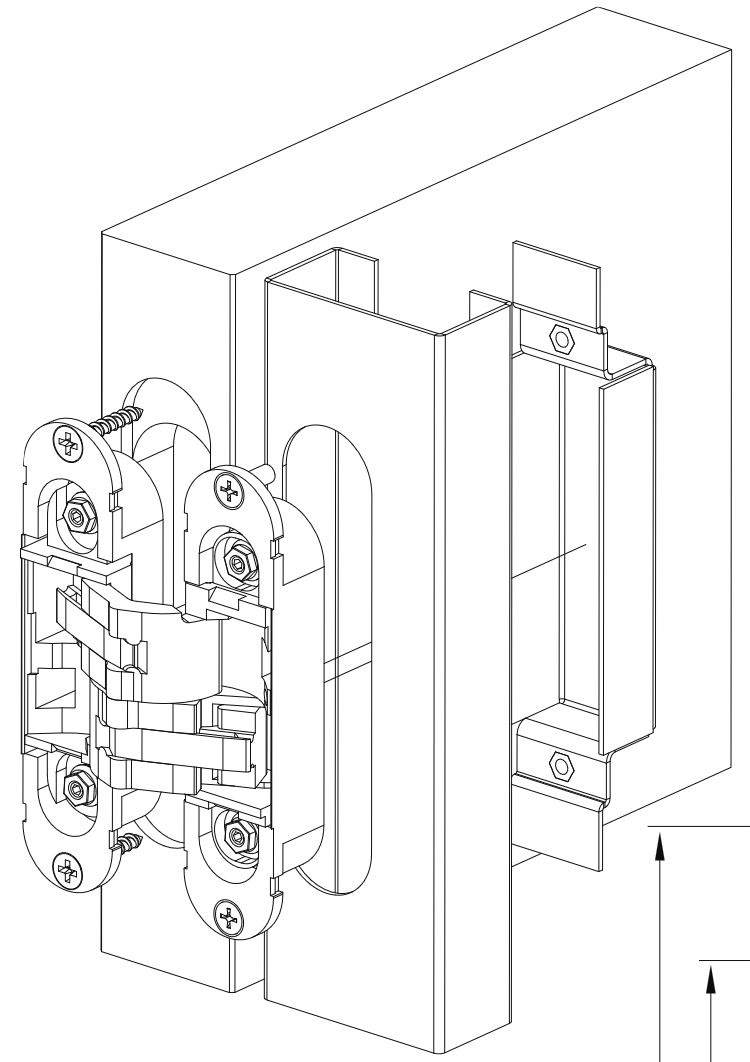

The BACXGP metal fixing box is used to fit a concealed hinge to a metal hollow section of a post, jamb or door.

CEAM Fixing Box

The BACXGP metal fixing box is used to fit a concealed hinge to a metal hollow section of a post, jamb or door.

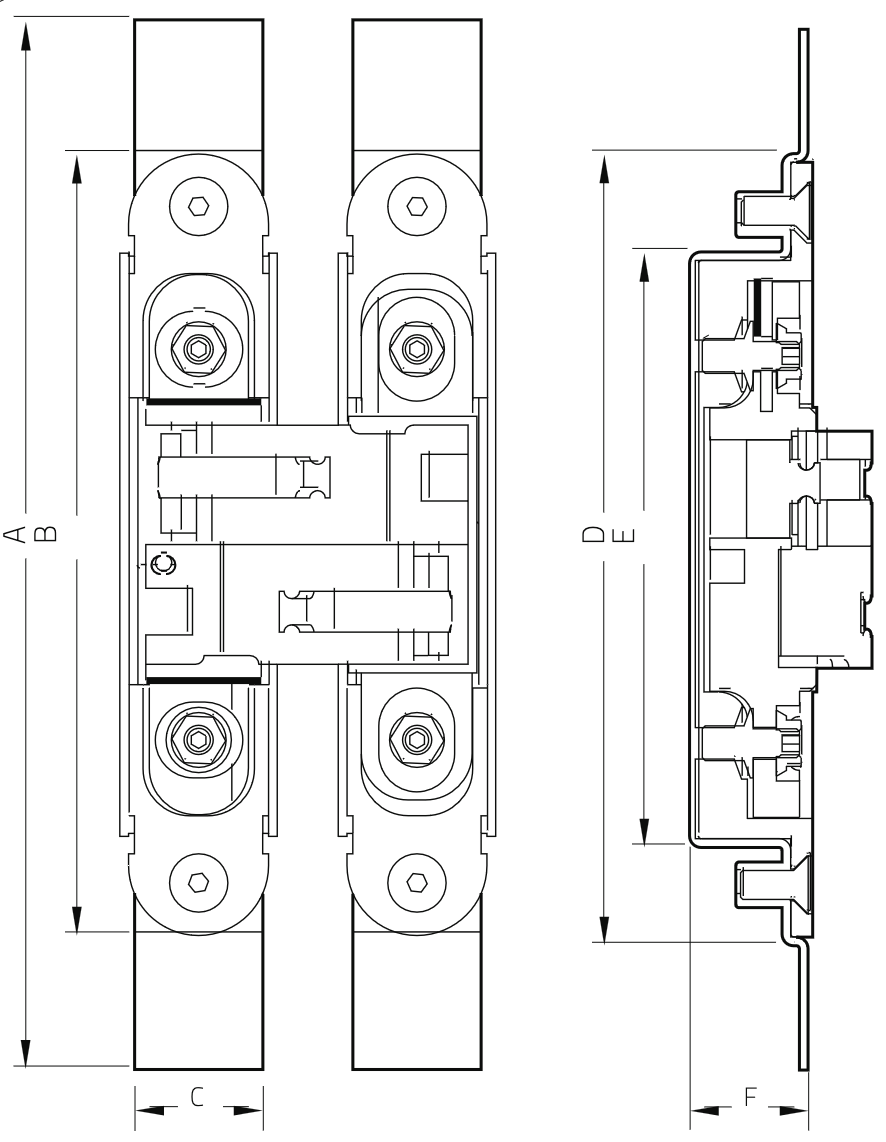

Code	A	B	C	D	E	F
BAC1130XGP	180mm	134mm	22mm	137mm	103mm	21mm
BAC1230XGP	180mm	130mm	29mm	133mm	105mm	21mm
BAC1131XGP	198mm	161mm	30mm	164mm	133mm	31mm
BAC1430XGP	180mm	129mm	19mm	129mm	100mm	21mm

Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
