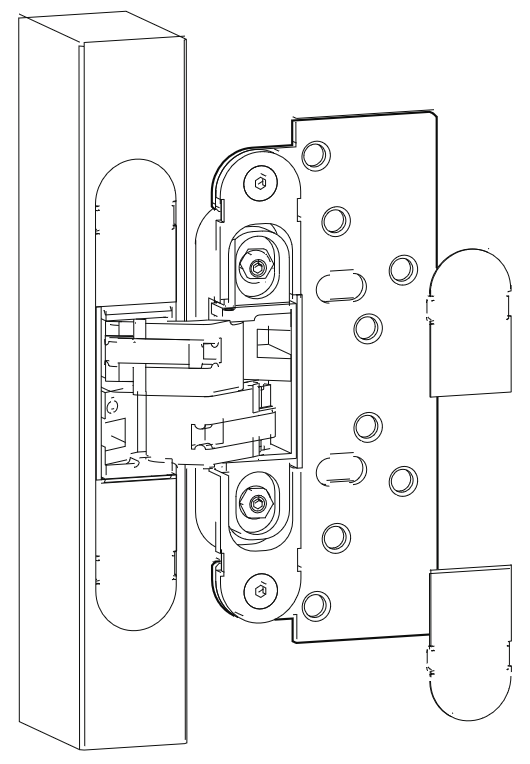

The offset fixing plate is an innovative solution tailored for thick cladding applications. It enables hinge placement at the edge of the jamb, ensuring secure support where traditional methods might fall short. With the capability to accommodate up to 20mm of cladding, this design is especially advantageous for projects involving decorative cladding. Its functionality not only enhances structural integrity but also offers versatility in various installation scenarios. The offset fixing plate can also be recessed into the jamb / door, making it suitable for situations that require narrow cladding, allowing for the use of cladding as thin as 12mm.

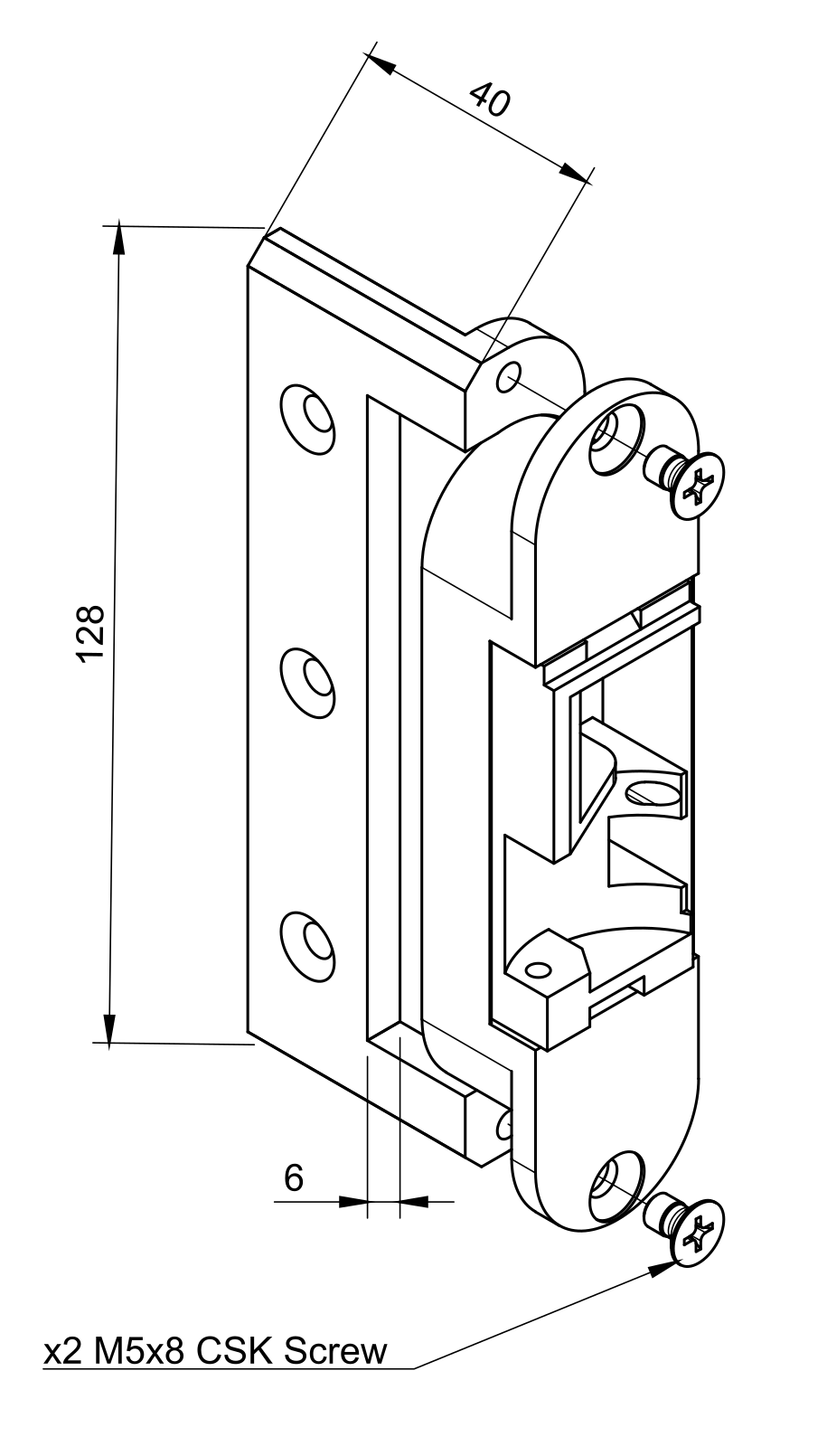

BAC1230XFP

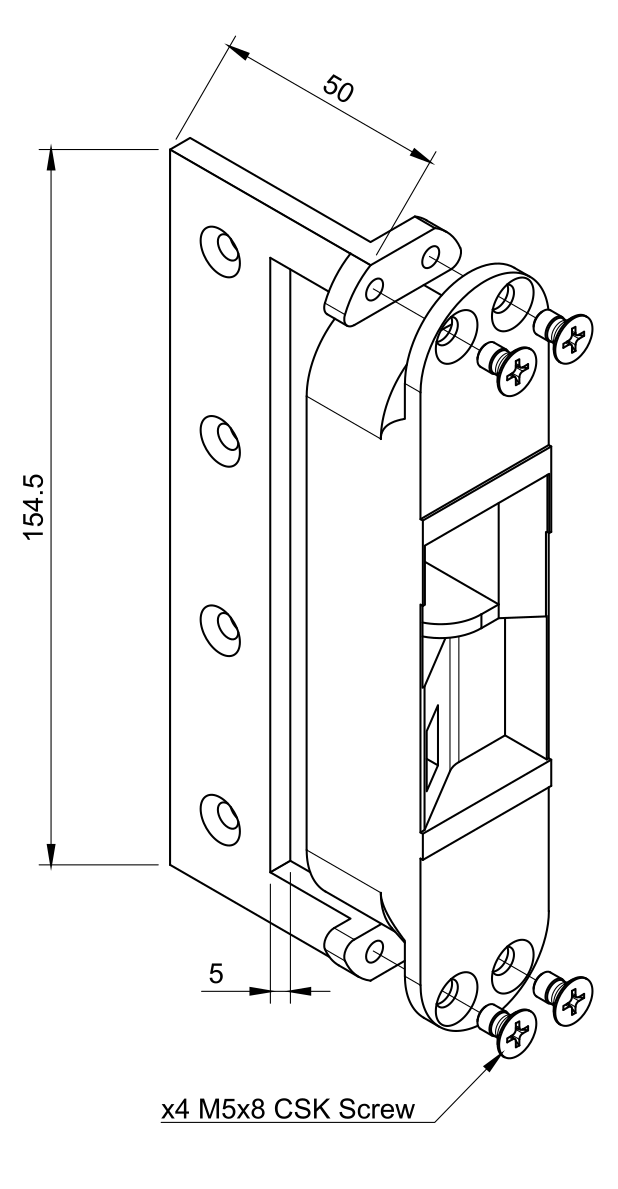

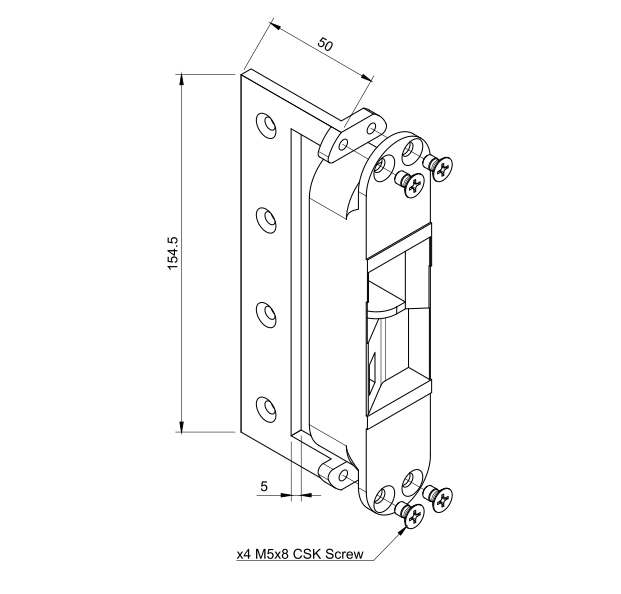

BAC1131XFP

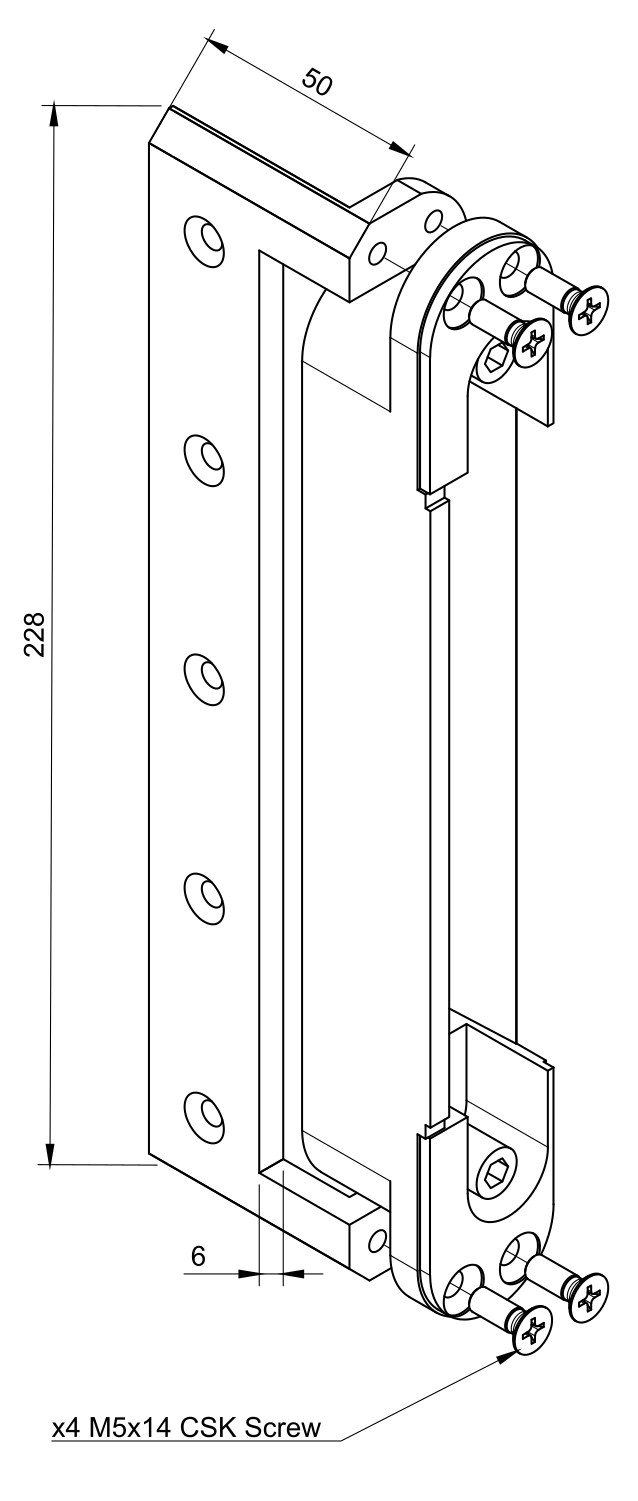

BAC1432WXFP
| New Offset Fixing Plate Code | Compatible Hinge |
|---|---|
| BAC1230XFP | BAC1230S |
| BAC1131XFP | BAC1131 |
| BAC1432WXFP | BAC1432W |
Weight Considerations
For all hinges excluding the BAC1432W, the supported weight range of the hinge remains unaffected by the use of offset fixing plates. For the BAC1432W refer to the table located in the data sheet.

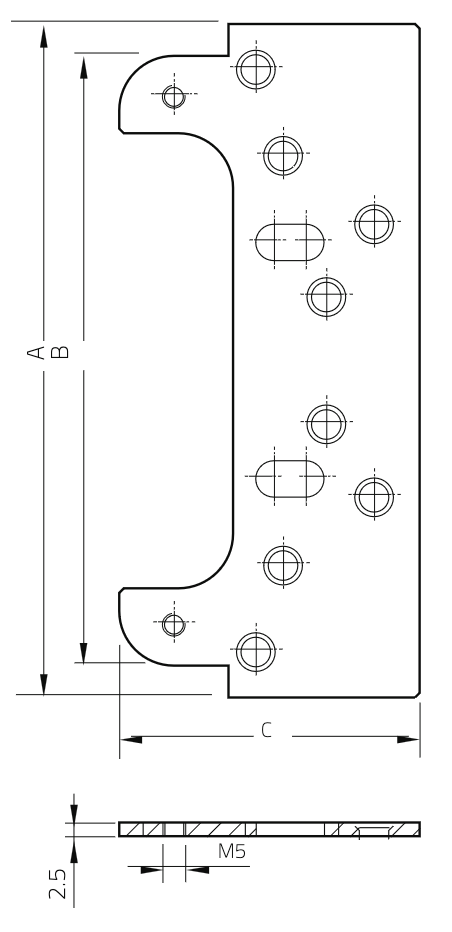

Offset Fixing Plate
| Code | A | B | C | D |
|---|---|---|---|---|
| BAC1130SXFPO | 148mm | 134mm | 134mm | 2.5mm |
| BAC1230SXFPO | 136mm | 136mm | 70mm | 3mm |
| BAC1131SXFPO | 180mm | 166mm | 74mm | 3mm |
| BAC1430SXFPO | 134mm | 120mm | 66mm | 3mm |
Are you curious about the endless possibilities for this item? Contact us for more ideas to take your design to the next level.
